Product Summary

The PMBTA44 is a 400 V, 0.3 A NPN high-voltage low VCEsat (BISS) transistor. It is in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. The applications of the PMBTA44 include: (1)LED driver for LED chain module; (2)LCD backlighting; (3)High Intensity Discharge (HID) front lighting; (4)Automotive motor management; (5)Hook switch for wired telecom; (6)Switch mode power supply.

Parametrics

PMBTA44 absolute maximum ratings: (1)VCBO collector-base voltage: 500 V; (2)VCEO collector-emitter voltage: 400 V; (3)VEBO emitter-base voltage: 6 V; (4)IC collector current: 300 mA; (5)ICM peak collector current: 300 mA; (6)IBM peak base current: 100 mA; (7)Ptot total power dissipation: 250 mW; (8)Tj junction temperature: 150 ℃; (9)Tamb ambient temperature: -55 to +150 ℃; (10)Tstg storage temperature: -65 to +150 ℃.

Features

PMBTA44 features: (1)Low current (max. 300 mA); (2)High voltage (max. 400 V); (3)AEC-Q101 qualified.

Diagrams

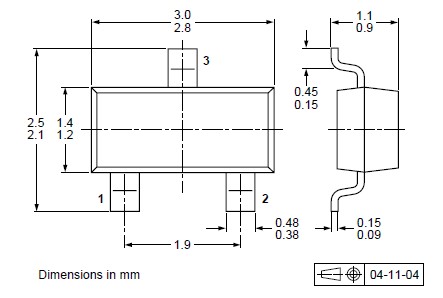

PMBTA44 dimensions
