Product Summary

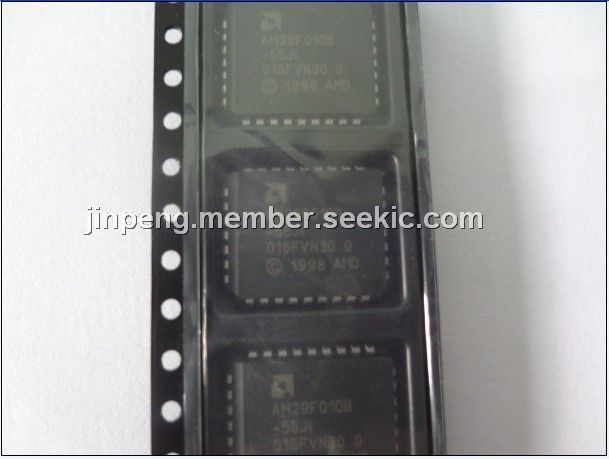

The AM29F010B -55JI is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The AM29F010B -55JI is offered in 32-pin PDIP, PLCC and TSOP packages. The byte-wide data appears on DQ0-DQ7. The device is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be programmed or erased in standard EPROM programmers. This device is manufactured using AMD 0.32 μm process technology, and offers all the features and benefits of the Am29F010 and Am29F010A. The standard device offers access times of 45, 55, 70, 90, and 120 ns, allowing high-speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls.
Parametrics
AM29F010B -55JI absolute maximum ratings (1)Storage Temperature Plastic Packages: –65℃ to +125℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground VCC: –2.0 V to +7.0 V; (4)A9: –2.0 V to +13.0 V; (5)All other pins: –2.0 V to +7.0 V; (6)Output Short Circuit Current: 200 mA.
Features
AM29F010B -55JI features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Low power consumption; (5)Flexible sector architecture; (6)Sector protection; (7)Compatible with JEDEC standards; (8)Data# Polling and Toggle Bits; (9)Minimum 1 million erase cycles guaranteed per sector.

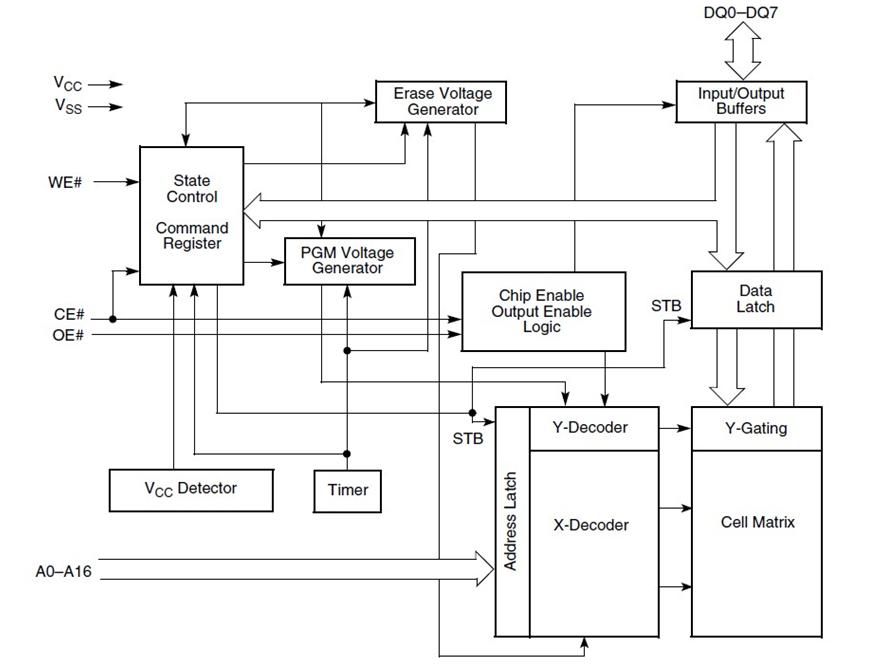

Diagrams
 |
