Product Summary
The MCP1318MT-29LE/OT is a voltage supervisor device designed to keep a micro- controller in Reset until the system voltage has reached and stabilized at the proper level for reliable system operation. The MCP1318MT-29LE/OT also offers a Watchdog Timer to monitor system operation and a Manual Reset input.
Parametrics
MCP1318MT-29LE/OT absolute maximum ratings: (1)Supply Voltage (VDD to VSS): 7.0V; (2)Input current (VDD): 10 mA; (3)Output current (RST): 10 mA; (4)Voltage on all inputs and outputs, except Open-Drain RST ; (5)(with no internal pull-up resistor), w.r.t. VSS: -0.6V to (VDD + 1.0V); (6)Voltage on Open-Drain RST ; (7)(with no internal pull-up resistor) w.r.t. VSS: -0.6V to 13.5V; (8)Storage temperature: -65 to +150℃; (9)Ambient temp. with power applied: -40 to +125℃; (10)Maximum Junction temp. with power applied: 150℃; (11)Power Dissipation (TA ≤ 70℃): 240 mW; (12)ESD protection on all pins: ≥ 4kV.
Features
MCP1318MT-29LE/OT features: (1)Low supply current: 1 μA (typ.), 10 μA (max.); (2)Precision monitoring trip point options: 2.9V and 4.6V (Standard Offerings); 2.0V to 4.7V in 100 mV increments, (Contact the local Microchip Sales Office); (3)Resets microcontroller in a power-loss event; (4)Reset Delay Time Out Option: 1.4 ms, 30 ms, 200 ms, or 1.6s (typ.); (5)Watchdog Timer Input Time Out Options: 6.3 ms, 102 ms, 1.6s or 25.6s (typ.); (6)Manual Reset (MR) input (active-low); (7)Single and complementary Reset output(s); (8)Reset Output Options: Push-Pull (active-high or active-low); Open-Drain (internal or external Pull-up); (9)Temperature Range: -40 to +125℃; (10)Voltage Range: 1.0V to 5.5V; (11)Lead Free Packaging.

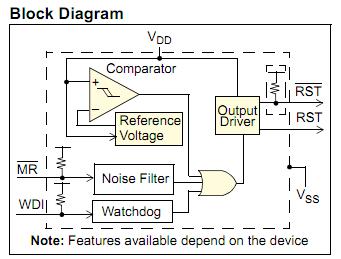

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MCP1318MT-29LE/OT |
Microchip Technology |
Supervisory Circuits Active high P-P |
Data Sheet |
|
|
|||||||||||||
