Product Summary

The ES2D is a Fast Rectifier from Fairchild Semiconductor.

Parametrics

ES2D absolute maximum ratings: (1)VRRM Maximum Repetitive Reverse Voltage: 50 to 200 V; (2)IF(AV) Average Rectified Forward Current: -375 " lead length @ TA = 110℃: 2.0 A; (3)IFSM Non-repetitive Peak Forward Surge Current, 8.3 ms Single Half-Sine-Wave: 50 A; (4)Tstg Storage Temperature Range: -55 to +150 ℃; (5)TJ Operating Junction Temperature: -55 to +150 ℃.

Features

ES2D features: (1)For surface mount applications.; (2)Glass passivated junction.; (3)Low profile package.; (4)Easy pick and place.; (5)Built-in strain relief.; (6)Superfast recovery times for high efficiency.

Diagrams

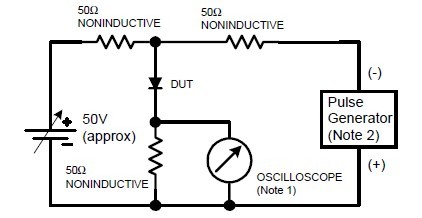

ES2D Test Circuit Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ES2D
ES2D

Fairchild Semiconductor

Rectifiers 2.0a Rectifier UF Recovery

Data Sheet

0-1: $0.32
1-25: $0.23
25-100: $0.15
100-250: $0.11
ES2D/1
ES2D/1


DIODE FAST 2A 200V SMB

Data Sheet

0-750: $0.13
ES2D/1T
ES2D/1T

Vishay Semiconductors

Rectifiers 2.0 Amp 200V 20ns

Data Sheet

Negotiable
ES2D/2BT
ES2D/2BT

Vishay Semiconductors

Rectifiers 2.0 Amp 200V 20ns

Data Sheet

Negotiable
ES2D/2CT
ES2D/2CT

Vishay Semiconductors

Rectifiers 2.0 Amp 200V 20ns

Data Sheet

Negotiable
ES2D/2T
ES2D/2T

Vishay Semiconductors

Rectifiers 2.0 Amp 200 Volt

Data Sheet

Negotiable
ES2D/51T
ES2D/51T

Vishay Semiconductors

Rectifiers 2.0 Amp 200V 20ns

Data Sheet

Negotiable
ES2D/52T
ES2D/52T

Vishay Semiconductors

Rectifiers 2.0 Amp 200V 20ns

Data Sheet

Negotiable
