Product Summary

The MPC509AP is a 4-channel differential multiplexer. The MPC509AP multiplexer has input overvoltage protection. Analog input voltages may exceed either power supply voltage without damaging the device or disturbing the signal path of other channels. The protection circuitry of the MPC509AP assures that signal fidelity is maintained even under fault conditions that would destroy other multiplexers. Analog inputs can withstand 70VPP signal levels and standard ESD tests. Signal sources of the MPC509AP are protected from short circuits should multiplexer power loss occur; each input presents a 1kΩ resistance under this condition. Digital inputs can also sustain continuous faults up to 4V greater than either supply voltage. These features make the MPC509AP ideal for use in systems where the analog signals originate from external equipment or separately powered sources. The MPC509AP is fabricated with Burr-Browns dielectrically isolated CMOS technology. The multiplexer is available in plastic DIP and plastic SOIC packages.

Parametrics

MPC509AP absolute maximum ratings: (1)Voltage between supply pins: 44V; (2)V+ to ground: 22V; (3)V– to ground: 25V; (4)Digital input overvoltage VEN, VA: VSUPPLY (+): +4V; VSUPPLY (–) : –4V or 20mA, whichever occurs first; (5)Analog input overvoltage VS: VSUPPLY (+): +20V; VSUPPLY (–): –20V; (6)Continuous current, S or D: 20mA; (7)Peak current, S or D (pulsed at 1ms, 10% duty cycle max): 40mA; (8)Power dissipation: 1.28W; (9)Operating temperature range: –40℃ to +85℃; (10)Storage temperature range: –65℃ to +150℃.

Features

MPC509AP features: (1)analog overvoltage protection: 70vpp; (2)no channel interaction during overvoltage; (3)break-before-make switching; (4)analog signal range: ±15v; (5)standby power: 7.5mw typ; (6)true second source.

Diagrams

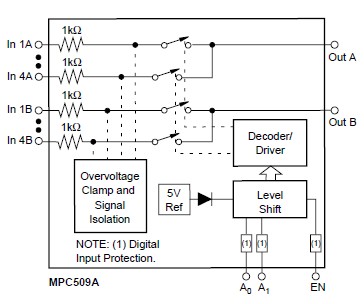

MPC509AP functional diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MPC509AP
MPC509AP

Texas Instruments

Multiplexer Switch ICs 4-Ch Diff-Input Analog Mult

Data Sheet

0-1: $3.51
1-25: $3.27
25-100: $2.95
100-250: $2.71
MPC509APG4
MPC509APG4

Texas Instruments

Multiplexer Switch ICs 4Ch Diff-Input Ana Multiplexer

Data Sheet

0-1: $3.47
1-25: $2.96
25-100: $2.71
100-250: $2.47
