Product Summary

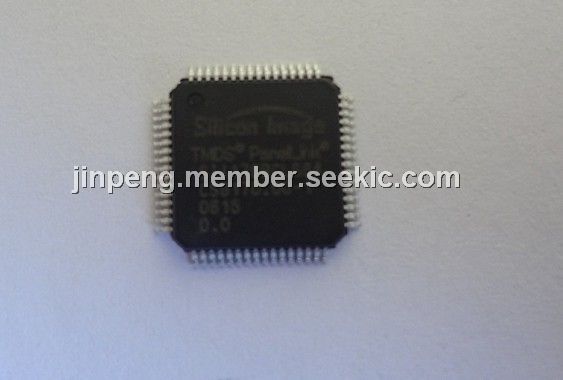

The SiL170BCLG64 is an integrated circuit.
Features
SiL170BCLG64 features: (1)Scaleable Bandwidth: 25 - 165MHz (VGA to UXGA); (2)Flexible Graphics Controller Interface: 12-bit or 24-bit mode 1 pixel/clock inputs; (3)Flexible Input Clocking: Single clock single edge (24-bit), Single clock dual edge (12-/24-bit), Dual clock single edge (12-bit); (4)I2C Slave Programming Interface up to 100kHz; (5)Low Voltage Interface: 3.3V with option for 1.0 to 3.0V Low Voltage Signal Mode; (6)Monitor Detection supported through hot plug and receiver detection; (7)De-skewing Option varies input clock to input data timing; (8)Low Power: 3.3V operation (120mA max.) and Power Down mode (1mA max.); (9)Cable Distance Support: over 5m with twisted pair and fiber-optics ready; (10)Compliant with DVI 1.0 (DVI is backwards compliant with VESA P&D TM and DFP).
 |
