Product Summary

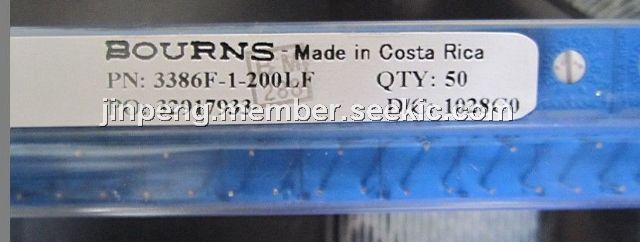

The 3386F-1-200LF is a 900VAC Square Trimpot Trimming Potentiometer.

Parametrics

3386F-1-200LF general specifications: (1)Standard Resistance Range:10 ohms to 2 megohms; (2)Resistance Tolerance:±10 % std.(tighter tolerance available); (3)Absolute Minimum Resistance:2 ohms max.; (4)Contact Resistance Variation:2 % or 3 ohms max.(whichever is greater); (5)Adjustability: Voltage:±0.05 %, Resistance:±0.15 %; (6)Resolution:Infinite; (7)Insulation Resistance:500 vdc. 1,000 megohms min.; (8)Dielectric Strength: Sea Level:900 vac, 70,000 Feet:350 vac; (9)Adjustment Angle:280 ° nom.

Features

3386F-1-200LF features: (1)Single Turn / Cermet / Industrial / Sealed; (2)Available on tape and reel; (3)Available with a knob for finger adjust; (4)Available with extended shaft; (5)Available with cross-slot rotor; (6)Top and side adjust types (F, P, H, W, X most popular); (7)RoHS compliant* version available; (8)For trimmer applications/processing guidelines.

Diagrams

3386F-1-200LF package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
3386F-1-200LF
3386F-1-200LF

Bourns

Trimmer Resistors - Through Hole 3/8" 20ohms 10% 0.5Watts Square

Data Sheet

0-1: $0.77
1-10: $0.70
10-50: $0.61
50-100: $0.48
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
3386
3386

Keystone Electronics

Mounting Hardware SEMI-TUBULAR RIVET

Data Sheet

0-1: $0.11
1-100: $0.08
100-500: $0.05
500-1000: $0.05
3386B
3386B

Other


Data Sheet

Negotiable
3386B-1-100
3386B-1-100

Bourns

Trimmer Resistors - Through Hole 3/8"SQ 10OHMS 10% 0.5WATTS

Data Sheet

0-35: $1.40
35-50: $1.25
50-100: $1.17
100-500: $1.07
3386B-1-100LF
3386B-1-100LF

Bourns

Trimmer Resistors - Through Hole 3/8" 10ohms 10% 0.5Watts Square

Data Sheet

0-1: $0.86
1-10: $0.78
10-50: $0.67
50-100: $0.55
3386B-1-101
3386B-1-101

Bourns

Trimmer Resistors - Through Hole 3/8"SQ 100OHMS 10% 0.5WATTS

Data Sheet

0-35: $1.40
35-50: $1.25
50-100: $1.17
100-500: $1.07
3386B-1-101LF
3386B-1-101LF

Bourns

Trimmer Resistors - Through Hole 3/8" 100ohms 10% 0.5Watts Square

Data Sheet

0-1: $0.86
1-10: $0.78
10-50: $0.67
50-100: $0.55
