Product Summary

The 7D431K is a kind of Metal Oxide Varistor.

Parametrics

7D431K absolute maximum ratings: (1)Varistor Voltage: 430 V; (2)Maximum Allowable Voltage: 275 V AC, 359 V AC; (3)Max Clamping Voltage (8/20 μS): V@10A, 710 V; Ip, 10A; (4)Energy: 10/1000μs, 40.0 J; 2ms, 27.5 J; (5)Max Peak Current(8/20 μS): 1 time, 1750 A; 2 times, 1250 A; (6)Rated Power: 0.25 W; (7)Typical Capacitance (Reference): 150 pF.

Diagrams

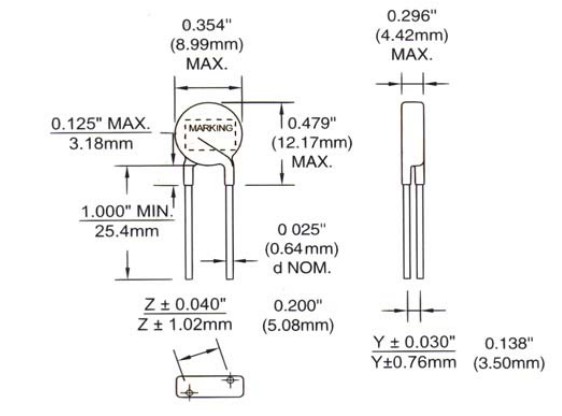

7D431K dimension
