Product Summary

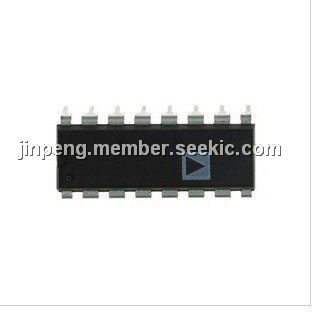

The ADG221KN is a mononlithic CMOS device comprising four independently selectable switches. On-chip latches facilitatic microprocessor interfacing. The device is designed on an enhanced LC2MOS process which gives an increased signal handling capability of ±15V. The ADG221KN also features hgih swtiching speeds and low Ron.
Parametrics
ADG221KN absolute maximum ratings: (1)VDD to VSS: 44V; (2)VDD to GND: 25V; (3)VS to GND: -25V; (4)anlog input, voltage at S,D: VSS-0.3V to VDD+0.3V; (5)continuous current, S or D: 30mA; (6)pulsed current S or D, 1ms duration, 10% duty cycle: 70mA; (7)digitla inputs: VSS-2V to VDD+2V or 20mA; (8)power dissipation: 470mW; (9)operating temperature: -40 to 85℃; (10)storage temperature: -65 to 150℃; (11)lead temperature (soldering 10sec): 300℃.
Features
ADG221KN features: (1)44V supply maximum rating; (2)±15V analog signal range; (3)low Ron; (4)low leakage; (5)break before make switching; (6)extended plastic temperature range; (7)low power dissipation; (8)superior DG221 replacement.

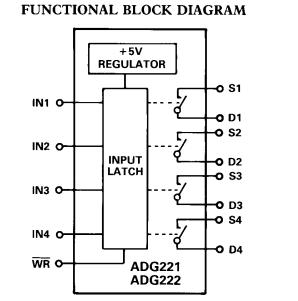

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADG221KN |
|
IC SWITCH QUAD SPST 16DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
ADG221KNZ |
|
IC SWITCH QUAD SPST 16DIP |
Data Sheet |
|
|
||||||||||||||||||
