Product Summary

The 1MBI50L-060 is an IGBT module. The applications of it are ideal for chopper application, AC and DC servo drive supply, uninterruptible power supply, industrial machines such as welding machines.

Parametrics

1MBI50L-060 absolute maximum ratings: (1)collector-emitter voltage:600V; (2)gate-emitter voltage:±20V; (3)collector current: IC:50A, ICpulse:100A; (4)max. power dissipation:200W; (5)operating temperature:+150℃; (6)storage temperature:-40℃ to +125℃; (7)isolation voltage:2500V.

Features

1MBI50L-060 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive; (4)isolated package.

Diagrams

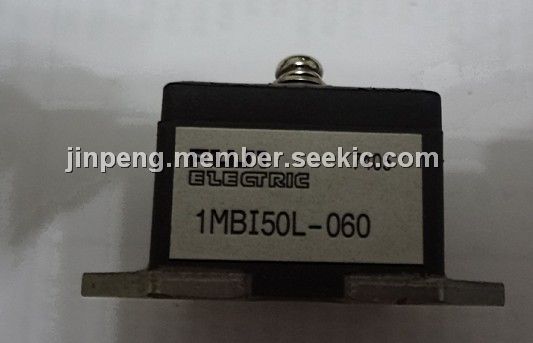

1MBI50L-060 circuit diagram
