Product Summary

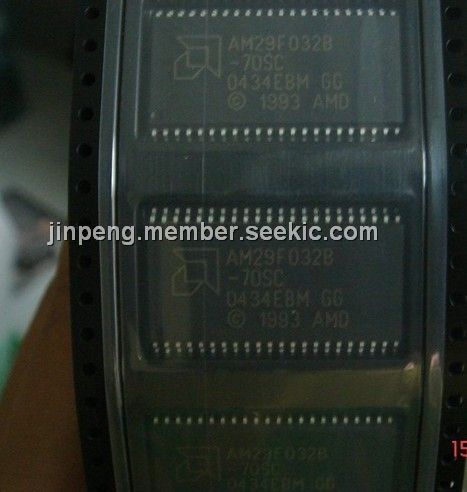

The AM29F032B-70SC is a 32 megabit (4 M x 8-Bit) CMOS 5.0 Volt-only, uniform sector flash memory. The AM29F032B-70SC is a 32 Mbit, 5.0 volt-only Flash memory organized as 4,194,304 bytes of 8 bits each. The 4 Mbytes of data are divided into 64 sectors of 64 Kbytes each for flexible erase capability. The 8 bits of data appear on DQ0–DQ7. The AM29F032B-70SC is offered in 40-pin TSOP and 44-pin SO packages. The AM29F032B-70SC is manufactured using AMDs 0.32 μm process technology. This AM29F032B-70SC is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be programmed in standard EPROM programmers.
Parametrics
AM29F032B-70SC absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground VCC: –2.0 V to 7.0 V; (4)A9, OE#, RESET#: –2.0 V to 13.0 V; (5)All other pins: –2.0 V to 7.0 V; (6)Output Short Circuit Current: 200 mA.
Features
AM29F032B-70SC features: (1)Low power consumption; (2)30 mA typical active read current; (3)30 mA typical program/erase current; (4)<1 μA typical standby current (standard access time to active mode); (5)n Flexible sector architecture; (6)64 uniform sectors of 64 Kbytes each; (7)Any combination of sectors can be erased.; (8)Supports full chip erase; (9)Group sector protection: A hardware method of locking sector groups to prevent any program or erase operations within that sector group.
Diagrams
 |
