Product Summary
The CPH3442-TL-E is a General-Purpose Switching Device.
Parametrics
CPH3442-TL-E absolute maximum ratings: (1)Drain-to-Source Voltage VDSS: 30 V; (2)Gate-to-Source Voltage VGSS: ±10 V; (3)Drain Current (DC) ID: 6.5 A; (4)Drain Current (Pulse) IDP PW≤10μs, duty cycle≤1%: 26 A; (5)Allowable Power Dissipation PD Mounted on a ceramic board (900mm*0.8mm): 1.2 W; (6)Channel Temperature Tch: 150 ℃; (7)Storage Temperature Tstg: -55 to +150 ℃.
Features
CPH3442-TL-E features: (1)Low ON-resistance; (2)Ultrahigh-speed switching; (3)2.5V drive.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

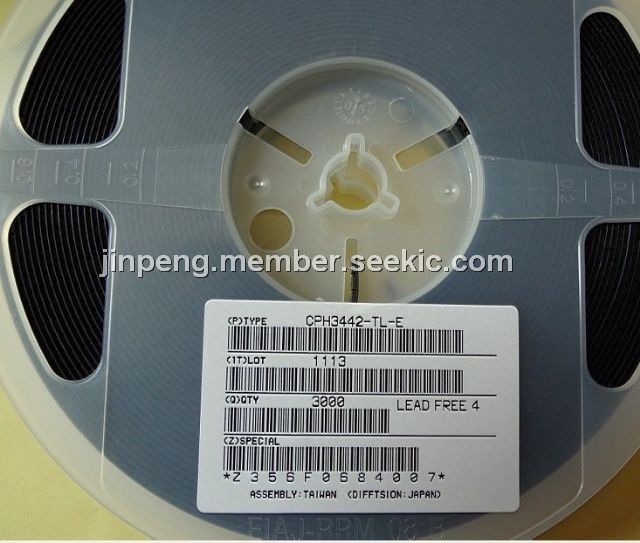

![]() CPH3442-TL-E |
![]() |
![]() MOSFET N-CH 30V 6.5A CPH3 |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
