Product Summary

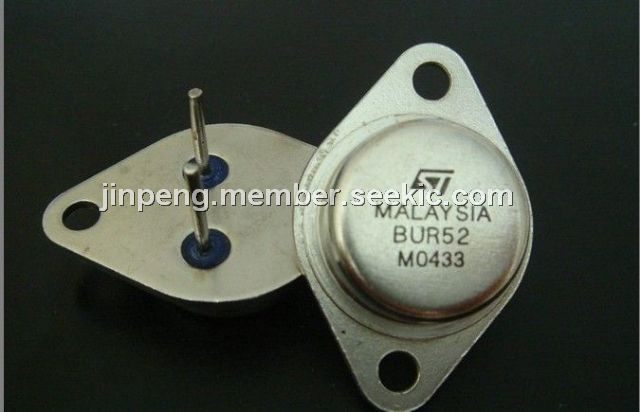

The BUR52 is a silicon multiepitaxial planar NPN transistor in modified Jedec TO-3 metal case, intented for use in switching and linear applications in military and industrial equipment.
Parametrics
BUR52 absolute maximum ratings: (1)VCBO Collector-Base Voltage (IE = 0): 350 V; (2)VCEO Collector-Emitter Voltage (IB = 0): 250 V; (3)VEBO Emitter-Base Voltage (IC = 0): 10 V; (4)IC Collector Current: 60 A; (5)ICM Collector Peak Current (tp = 10 ms): 80 A; (6)IB Base Current: 16 A; (7)Ptot Total Dissipation at Tc≤ 25 ℃: 350 W; (8)Tstg Storage Temperature: -65 to 200 ℃; (9)Tj Max. Operating Junction Temperature: 200 ℃.
Features
BUR52 features: (1)SGS-thomson preferred salestype; (2)NPN transistor; (3)Maintains good switching performance even without negative base drive.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BUR52 |
STMicroelectronics |
Transistors Bipolar (BJT) DISC BY STM 08/01 TO-3 NPN PWR DARL |
Data Sheet |
Negotiable |
|
||||
