Product Summary

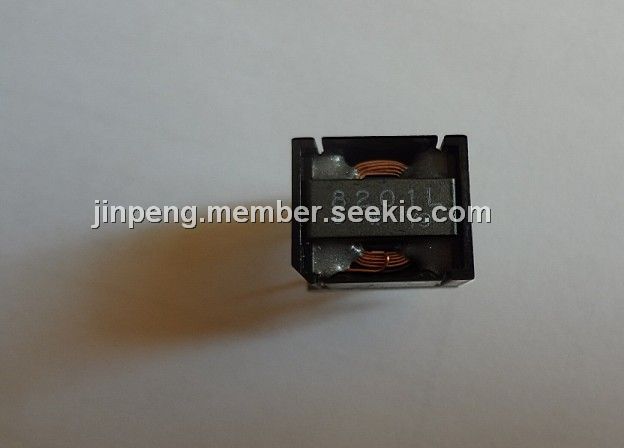

The SI-8201L is a switching type, self oscillation type with coil.

Parametrics

SI-8201L absolute maximum ratings: (1)DC Input Voltage VIN: 45 V; (2)Storage Temperature Tstg: –25 to +85℃; (3)DC Input Voltage Range VIN: 10 to 40; (4)Output Current Range IO: 0 to 0.4; (5)Operating Temperature Range Top –10 to +65℃.

Features

SI-8201L features: (1)Integrated switching IC and coiconstruction; (2)Requires 2 externacomponents only; (3)Low switching noise; (4)Heatsink not required.

Diagrams

SI-8201L Block Diagram
