Product Summary
The CM150DU-24F is an IGBT module for high power switching use.
Parametrics
CM150DU-24F absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Gate-emitter voltage: ±20V; (3)Maximum collector dissipation: 600W; (4)Junction temperature: -40 ~ +150℃; (5)Isolation voltage: 2500Vrms.
Features
CM150DU-24F features: (1)IC: 150A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

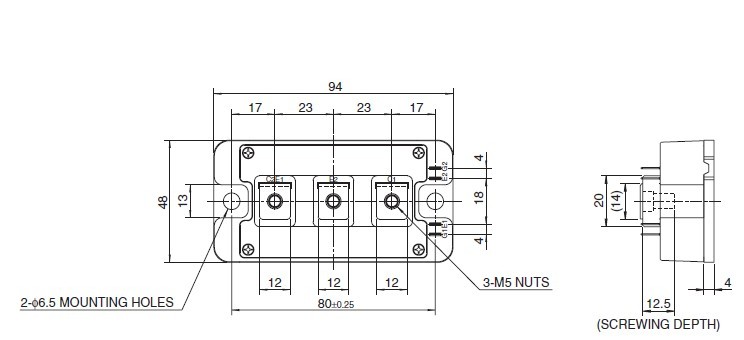

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM150DU-24F |
|
IGBT MOD DUAL 1200V 150A F SER |
Data Sheet |
|
|
||||||
