Product Summary

Ideal for space critical applications, the LM4431M3X-2.5 voltage reference is available in the sub-miniature (3 mm x 1.3 mm) SOT-23 surface-mount package. The LM4431M3X-2.5 advanced design eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making the LM4431M3X-2.5 easy to use. The operating current range is 100 μA to 15 mA. The LM4431M3X-2.5 utilizes fuse and zener-zap reverse breakdown voltage trim during wafer sort to ensure that the parts have an accuracy of better than ±2.0% at 25℃. Bandgap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.

Parametrics

LM4431M3X-2.5 absolute maximum ratings: (1)Reverse Current: 20 mA; (2)Forward Current: 10 mA; (3)Power Dissipation (TA = 25℃), M3 Package: 306 mW; (4)Storage Temperature: -65℃ to +150℃; (5)Lead Temperature, M3 Package, Vapor phase (60 seconds): +215℃; Infrared (15 seconds) +220℃; (6)ESD Susceptibility, Human Body Model: 2 kV; Machine Model (Note 3) 200V.

Features

LM4431M3X-2.5 features: (1)Small package: SOT-23; (2)No output capacitor required; (3)Tolerates capacitive loads; (4)Fixed reverse breakdowvoltage of 2.50V.

Diagrams

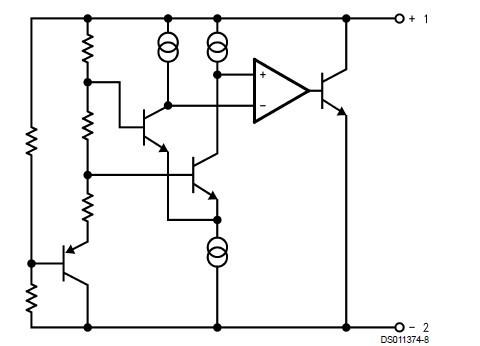

LM4431M3X-2.5 Functional Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM4431M3X-2.5
LM4431M3X-2.5
National Semiconductor (TI)
Voltage & Current References
Data Sheet
0-3000: $0.27
3000-6000: $0.26
6000-12000: $0.24
LM4431M3X-2.5/NOPB
LM4431M3X-2.5/NOPB
National Semiconductor (TI)
Voltage & Current References
Data Sheet
0-1: $0.73
1-25: $0.58
25-100: $0.52
100-250: $0.45
