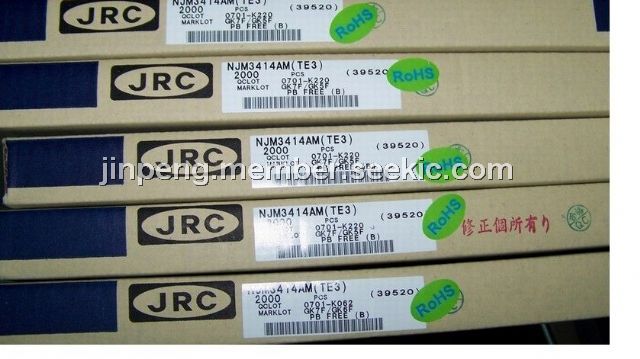

Product Summary
The NJM3414AM(TE3) is a high gain, high output current, high output voltage swing dual operational amplifier capable of driving 70mA.
Parametrics
NJM3414AM(TE3) absolute maximum ratings: (1)supply voltage:15V or ±7.5V; (2)differential input voltage:15V; (3)input voltage:-0.3V to +15V; (4)operating temperature range:-20℃ to +75℃; (5)storage temperature range:-40℃ to +125℃.
Features
NJM3414AM(TE3) features: (1)single supply; (2)operating voltage:+3V to +15V; (3)high output current:70mA; (4)slew rate:1.0V/us typ.; (5)package outline:DIP8, DMP8, SIP8, SSOP8; (6)bipolar technology.

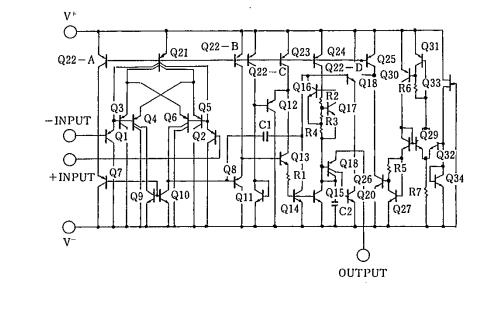

Diagrams
![]() |
