Product Summary

The TMMBAT48FILM is a general purpose, metal to silicon diode featuring very low turn-on voltage and fast switching. The device has integrated protection against excessive voltage such as electrostatic discharges.

Parametrics

TMMBAT48FILM absolute maximum ratings: (1)VRRM Repetitive Peak Reverse Voltage: 20 to 40 V; (2)IF Forward Continuous Current Tl = 25 ℃: 350 mA; (3)IFRM Repetitive Peak Fordward Current: 1 A; (4)IFSM Surge non Repetitive Forward Current: 7.5 A; 1.5A; (5)Ptot Power Dissipation Tl = 25 ℃: 330 mW; (6)Tstg, Storage and Junction Temperature Range: - 65 to 150℃; - 65 to 125℃; (7)TL Maximum Temperature for Soldering during 15s: 260 ℃.

Features

TMMBAT48FILM features: (1)Rth(j-l) Junction-leads: 300 ℃/W; (2)VBR : 40V; (3)trr: 10 ns.

Diagrams

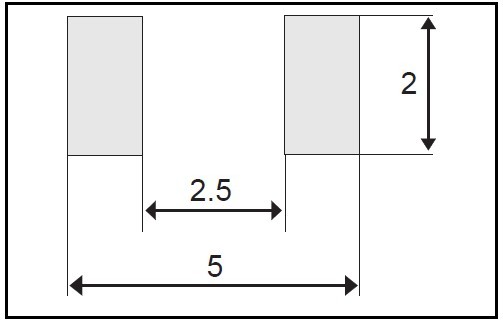

TMMBAT48FILM FOOT PRINT DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TMMBAT48FILM
TMMBAT48FILM

STMicroelectronics

Schottky (Diodes & Rectifiers) 350mA 40 Volt

Data Sheet

0-1: $0.11
1-10: $0.10
10-100: $0.10
100-250: $0.09
