Product Summary

The NR8040T101M is a SMD Power Inductor.

Parametrics

NR8040T101M absolute maximum ratings: (1)Inductance: 100μH(±20%); (2)Inductance Measuring Frequency: 100kHz; (3)Rated Current -Saturation Current: 1000mA; (4)Rated Current -Temperature Rise Current: 1000mA; (5)DC Resistance (max): 0.377Ω; (6)Avg. of DC.Resistance: 0.29Ω; (7)Temperature Range: -25 to 120℃; (8)Self-resonant Frequency (min): 6MHz; (9)RoHS Compliance: Yes; (10)Halogen Free: Yes; (11)Soldering Method: Reflow.

Features

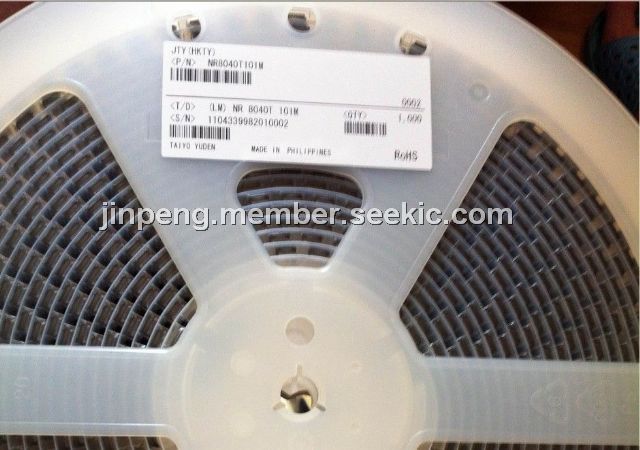

NR8040T101M features: (1)Item Summary:100μH(±20%), 1000mA, 1000mA; (2)Lifecycle Stage: Mass Production; (3)Standard packaging quantity (minimum) Taping 1000pcs.

Diagrams

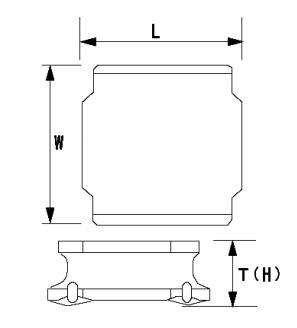

NR8040T101M dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NR8040T101M
NR8040T101M
Taiyo Yuden
Power Inductors INDCTR SMD HI CUR 100uH 20%
Data Sheet
0-1: $0.34
1-10: $0.32
10-50: $0.30
50-100: $0.28
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NR8040T101M
NR8040T101M
Taiyo Yuden
Power Inductors INDCTR SMD HI CUR 100uH 20%
Data Sheet
0-1: $0.34
1-10: $0.32
10-50: $0.30
50-100: $0.28
