Product Summary

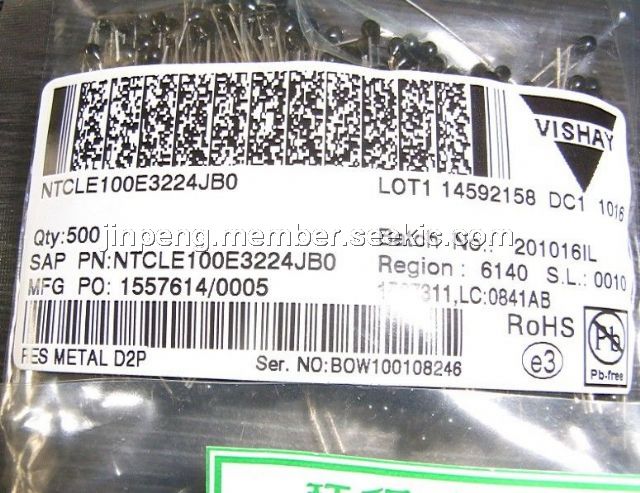

The NTCLE100E3224JB0 is a 250mW NTC Thermistor. It has a negative temperature coefficient. The NTCLE100E3224JB0 consists of a chip with two tin-plated copper leads. It is grey lacquered and not insulated. The device is very accurate (±0.5℃) over a trajectory from 25℃ to 85℃.
Parametrics
NTCLE100E3224JB0 general specifications: (1)Resistance at 25℃:4.7 to 100 kΩ; (2)Temperature measurement accuracy(between 25℃ and 85℃):±0.5℃; (3)Climatic category:40/125/56; (4)Maximum dissipation:250 mW; (5)Dissipation factor(for information only):7 mW/K; (6)Response time (for information only):1.2 s; (7)Thermal time constant(for information only):11 s; (8)Operating temperature range: at zero dissipation (continuously):-40℃ to + 125℃, at maximum dissipation:0℃ to + 55℃.
Features
NTCLE100E3224JB0 features: (1)Excellent accuracy between 25℃ and 85℃; (2)High stability over a long life; (3)Old part number was 2322 640 10; (4)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

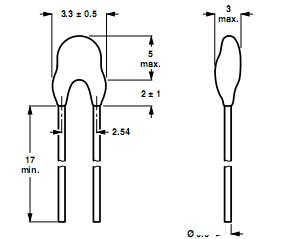

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NTCLE100E3224JB0 |
Vishay/BC Components |
Thermistors - NTC NTC 220Kohms Radial |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
NTCLE100CL101JB0 |
Vishay/BC Components |
Thermistors - NTC NTC 100 ohm Radial |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTCLE100CL102JB0 |
Vishay/BC Components |
Thermistors - NTC NTC 1K ohm Radial |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTCLE100CL103HB0 |
Vishay/BC Components |
Thermistors - NTC NTC 10Kohms R25@3% |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTCLE100CL103JB0 |
Vishay/BC Components |
Thermistors - NTC NTC 10K ohm Radial |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTCLE100CL103JT1 |
Vishay/BC Components |
Thermistors - NTC 10K OHM 5% |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTCLE100CL104JB0 |
Vishay/BC Components |
Thermistors - NTC NTC 100K ohm Radial |
Data Sheet |
Negotiable |
|
||||||||||||
