Product Summary

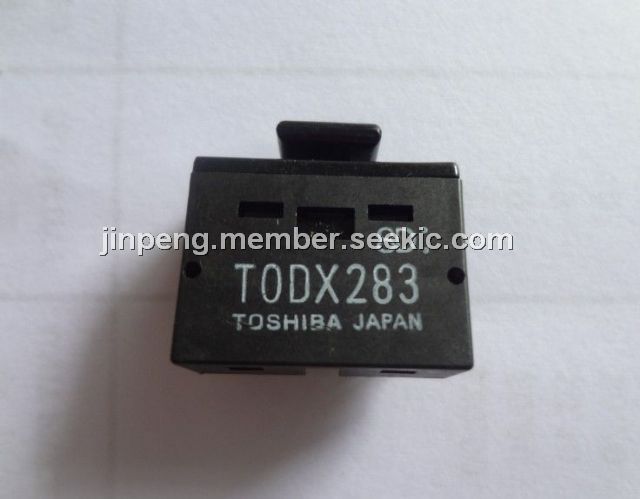

The TODX283 is a fiber optic transceiving module designed for duplex digital signal communication.

Parametrics

TODX283 absolute maximum ratings: (1)Storage Temperature, Tstg: -40 to 85℃; (2)Operating Temperature, Topr: -10 to 70℃; (3)Supply Voltage, Vcc: - 0.5 to 7V; (4)Input Voltage, VIN: - 0.5 to VCC + 0.5V; (5)Low Level Output Current, IOL: 20mA; (6)High Level Output Current, IOH: -1mA; (7)Soldering Temperature, Tsoi: 260℃.

Features

TODX283 features:(1)Data rate: DC to 50Mb/s (NRZ code); (2)Transmission distance: Up to 10m (APF); Up to 100m (PCF); (3)Ceramic Package Type; (4)TTL interface; (5)ATC (Automatic Threshold Control) circuit is used for stabilized output at wide range of optical power level; (6)For PN and F07 type connector.

Diagrams

TODX283 circuit diagram
