Product Summary

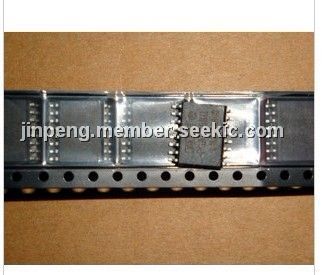

The ULQ2803LW is a high-voltage, high-current Darlington array. It features continuous load current ratings to 500 mA for each of the drivers. The device is ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads. Typical power loads totaling over 260 W can be controlled at an appropriate duty cycle depending on ambient temperature and number of drivers turned on simultaneously. Typical loads of the ULQ2803LW include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters. All devices feature open-collector outputs with integral clamp diodes.
Parametrics
ULQ2803LW absolute maximum ratings: (1)Output Voltage, VCE: 50 V; (2)Input Voltage, VIN: 30 V; (3)Continuous Output Current, IC: 500 mA; (4)Continuous Input Current, IIN: 25 mA; (5)Power Dissipation, PD: 1.0 W; (6)Operating Temperature Range, TA: -20 to + 85℃; (7)Storage Temperature Range, TS: -55 to +150℃.
Features
ULQ2803LW features: (1)TTL, DTL, PMOS, or CMOS Compatible Inputs; (2)Output Current to 500 mA; (3)Output Voltage to 95 V; (4)Transient-Protected Outputs; (5)Dual In-Line Package or Wide-Body Small-Outline Package.
Diagrams
 |
