Product Summary

The MM3Z12VT1G Zener diode is packaged in a SOD-323 surface mount package that has a power dissipation of 200 mW. The MM3Z12VT1G is designed to provide voltage regulation protection and is especially attractive in situations where space is at a premium. It is well suited for applications such as cellular phones, hand held portables, and high density PC boards.

Parametrics

MM3Z12VT1G absolute maximum ratings: (1)Total Device Dissipation FR-5 Board,(Note 1) @ TA = 25℃: 200 mW; (2)Derate above 25℃: 1.5 mW/℃; (3)Thermal Resistance, Junction-to-Ambient: 635 ℃/W; (4)Junction and Storage Temperature Range: -65 to +150℃.

Features

MM3Z12VT1G features: (1)Standard Zener Breakdown Voltage Range - 2.4 V to 75 V; (2)Steady State Power Rating of 200 mW; (3)Small Body Outline Dimensions: 0.067 x 0.049 (1.7 mm x 1.25 mm); (4)Low Body Height: 0.035 (0.9 mm); (5)Package Weight: 4.507 mg/Unit; (6)ESD Rating of Class 3 (> 16 kV) per Human Body Model; (7)AEC-Q101 Qualified and PPAP Capable - SZMM3ZxxxT1G; (8)SZ Prefix for Automotive and Other Applications Requiring Unique; (9)Site and Control Change Requirements; (10)These are Pb-Free Devices.

Diagrams

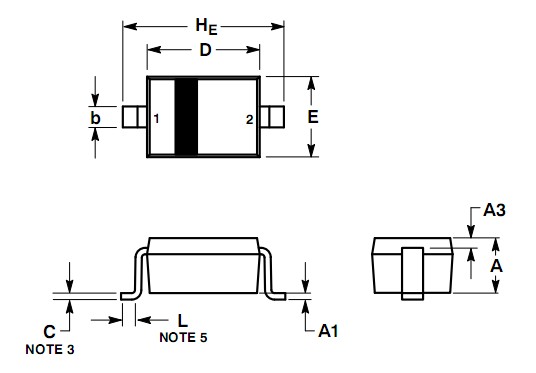

MM3Z12VT1G dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MM3Z12VT1G
MM3Z12VT1G
ON Semiconductor
Zener Diodes 12V 200mW
Data Sheet
0-1: $0.10
1-25: $0.07
25-100: $0.03
100-500: $0.02
