Product Summary

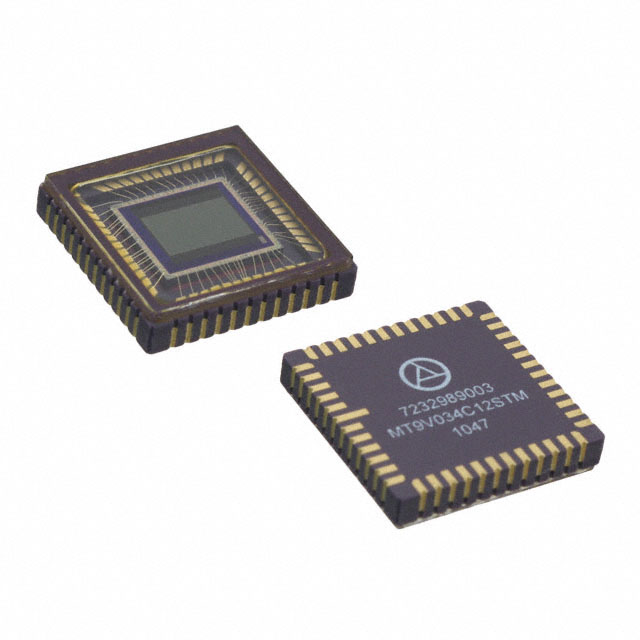

The MT9V034C12STM is a 1/3-Inch wide-VGA CMOS digital image sensor.

Parametrics

MT9V034C12STM absolute maximum ratings: (1)Optical format: 1/3-inch; (2)Active imager size: 4.51mm(H) x 2.88mm(V); (3)Active pixels: 752H x 480V; (4)Pixel size: 6.0 x 6.0μm; (5)Full resolution: 752 x 480; (6)Frame rate: 60 fps (at full resolution); (7)ADC resolution: 10-bit column-parallel; (8)Responsivity: 4.8 V/lux-sec (550nm); (9)Dynamic range: >55dB linear, >110dB in HDR mode; (10)Supply voltage: 3.3V +0.3V; (11)Power consumption: <160mW at maximum data rate; (12)Operating temperature: –30℃ to +70℃ ambient; (13)Packaging: 48-pin CLCC.

Features

MT9V034C12STM features: (1)DigitalClarity CMOS imaging technology; (2)Array format: Wide-VGA, active 752H x 480V(360,960 pixels); (3)TrueSNAP global shutter photodiode pixels; simultaneous integration and readout; (4)Monochrome or color: NIR enhanced performance for use with non-visible NIR illumination; (5)Readout modes: progressive or interlaced; (6)Shutter efficiency: >99%; (7)Simple two-wire serial interface; (8)Real-time exposure context switching: dual register set; (9)Register lock capability; (10)Window size: User programmable to any smaller format (QVGA, CIF, QCIF); (11)Data rate can be maintained independent of window size; (12)Binning: 2 x 2 and 4 x 4 of the full resolution; (13)ADC: On-chip, 10-bit column-parallel; (14)Support for four unique serial control register IDs to control multiple imagers on the same bus.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MT9V034C12STM
MT9V034C12STM

SENSOR IMAGE VGA MONO 48-CLCC
Data Sheet
0-152: $7.46
MT9V034C12STMD ES
MT9V034C12STMD ES

KIT DEV FOR MT9V034 MONO
Data Sheet
0-1: $716.04
MT9V034C12STMH ES
MT9V034C12STMH ES

KIT HEADBOARD FOR MT9V034 MONO
Data Sheet
0-1: $206.55
