Product Summary

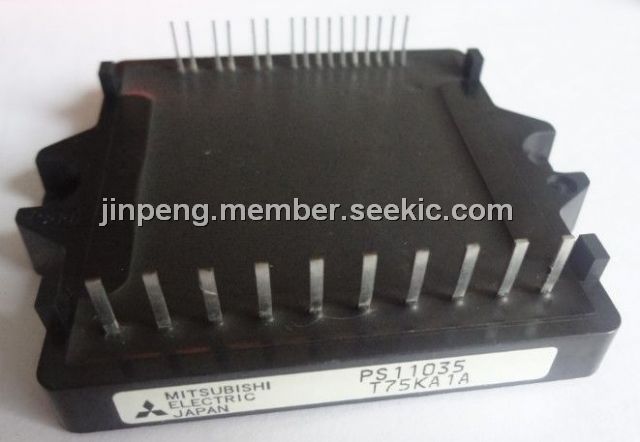

The PS11035 is an intelligent power module. It can be used in acoustic noise-less 1.5KW/200V AC class 3 phase inverters, motor control applications, and motors with built-in small size inverter package.

Parametrics

PS11035 absolute maximum ratings: (1)VCC Supply voltage: 450V; (2)VCC(surge) Supply voltage (surge): 500V; (3)VP or VN Each output IGBT collector-emitter static voltage: 600V; (4)VP(S) or VN(S) Each output IGBT collector-emitter switching voltage: 600V; (5)±Ic(±Icp) Each output IGBT collector current: ±20(±40)A.

Features

PS11035 features: (1)Converter bridge for 3 phase AC-to-DC power conversion; (2)3 phase IGBT inverter bridge configured by the latest 3rd, generation IGBT and diode technology; (3)Inverter output current capability IO.

Diagrams

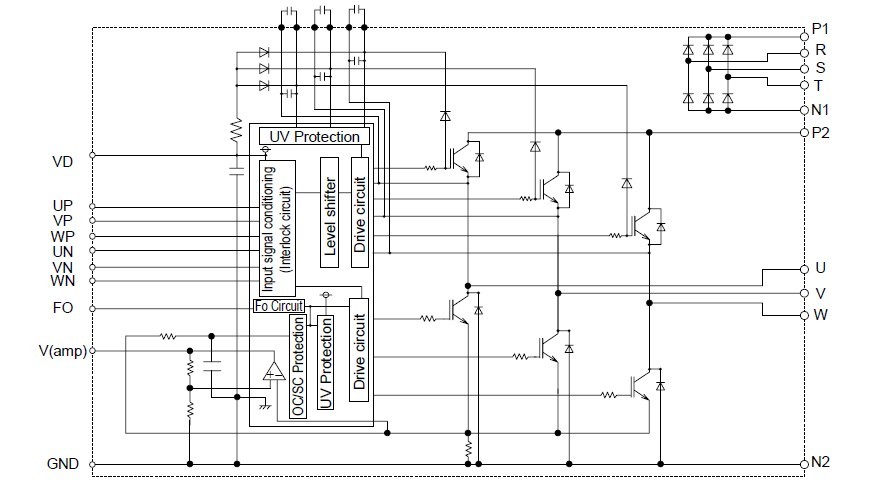

PS11035 block diagram
