Product Summary

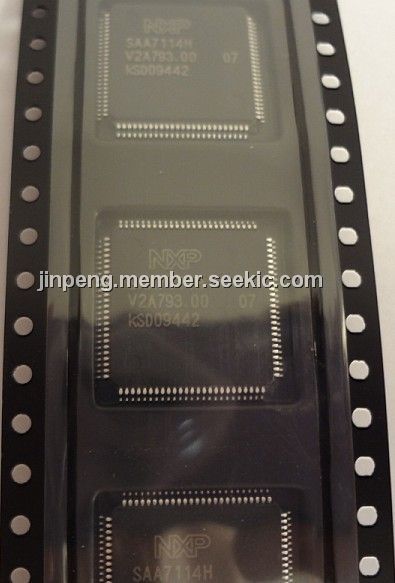

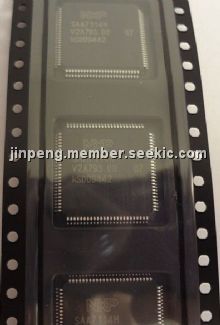

The SAA7114H is a PAL/NTSC/SECAM video decoder with adaptive PAL/NTSC comb filter, VBI-data slicer and high performance scaler.
Parametrics
SAA7114H absolute maximum ratings: (1)Category: Integrated Circuits (ICs); (2)Type: Video Decoder; (3)Applications: Desktop, Processing, Video; (4)Mounting Type: Surface Mount; (5)Package / Case: 100-LQFP; (6)Voltage - Supply, Analog: 3.1 V ~ 3.5 V; (7)Voltage - Supply, Digital: 3 V ~ 3.6 V; (8)Packaging: Tape & Reel (TR); (9)Lead Free Status: Lead Free; (10)RoHS Status: RoHS Compliant.
Features
SAA7114H features: (1)Two analog preprocessing channels in differential CMOS style inclusive built-in analog anti-alias filters; (2)Fully programmable static gain or Automatic Gain Control (AGC) for the selected CVBS or Y/C channel; (3)Automatic Clamp Control (ACC) for CVBS, Y and C; (4)Switchable white peak control; (5)Two 9-bit video CMOS Analog-to-Digital Converters (ADCs), digitized CVBS or Y/C signals are available on the expansion port; (6)On-chip line-locked clock generation according "ITU 601"; (7)Digital PLL for synchronization and clock generation from all standards and non-standard video sources e.g. consumer grade VTR; (8)Requires only one crystal (32.11 or 24.576 MHz) for all standards; (9)Horizontal and vertical sync detection; (10)Automatic detection of 50 and 60 Hz field frequency, and automatic switching between PAL and NTSC standards.

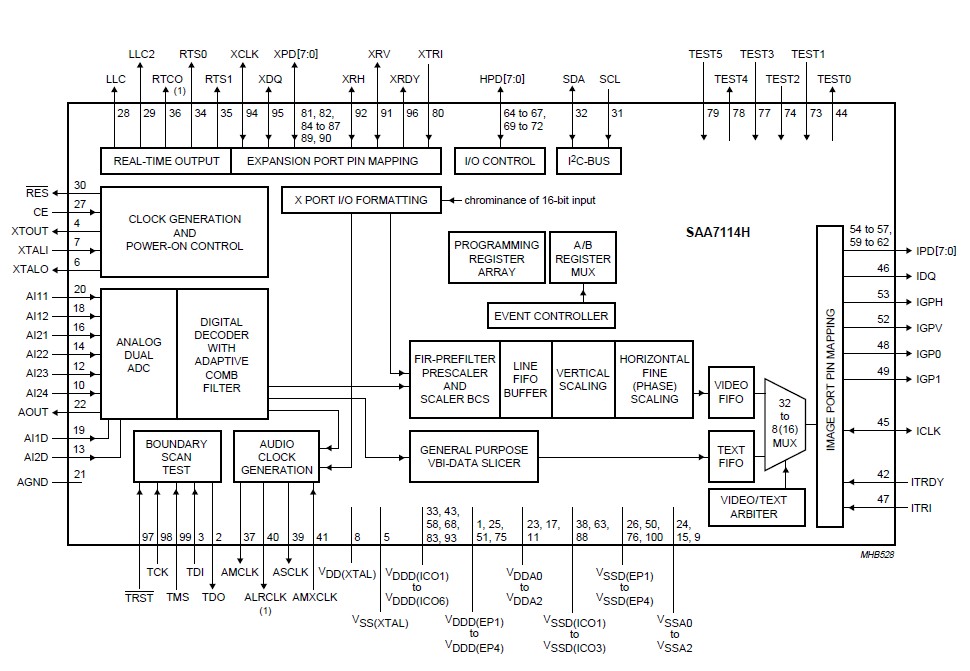

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SAA7114H |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
SAA7114H/V2,518 |
NXP Semiconductors |
Video ICs DIGITAL VIDEO DECODER W/COMB F |
Data Sheet |
Negotiable |
|
||||
|
SAA7114H/V2,557 |
NXP Semiconductors |
Video ICs DECODR W/FILTR |
Data Sheet |
Negotiable |
|
||||
