Product Summary

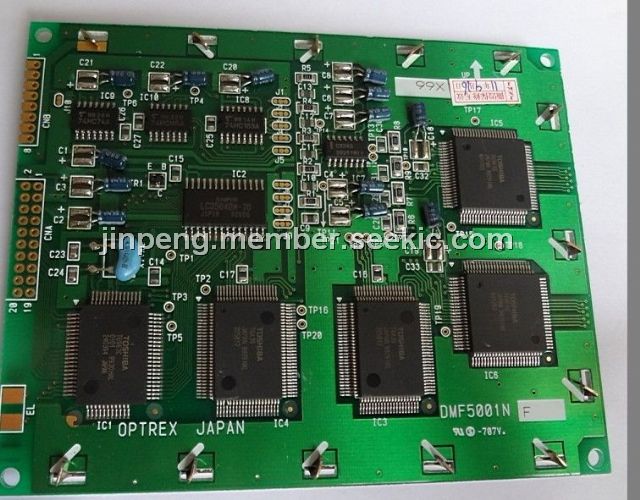

The DMF5001N is a LCD Module.
Parametrics
DMF5001N absolute maximum ratings: (1)Supply Voltage (Logic), VCC-VSS: -0.3 7.0 V; (2)Supply Voltage (LCD Drive), VCC-VEE: -0.3 30.0 V; (3)Input Voltage, VI: -0.3 VCC+0.3 V.
Features
DMF5001N features: (1)Operating Temp: min. 0 ～ max. 50℃; (2)Storage Temp: min. -20 ～ max. 60℃; (3)Dot Pixels: 160 (W) × 128 (H) dots; (4)Dot Size: 0.54 (W) × 0.54 (H) mm; (5)Dot Pitch: 0.58 (W) × 0.58 (H) mm; (6)Viewing Area: 101.0 (W) × 82.0 (H) mm; (7)Outline Dimensions: 129.0 (W) × 102.0 (H) × 19.2 max. (D) mm; (8)Weight: 190g max; (9)LCD Type: NTD-7353; (10)( STN / Yellow-mode / Transmissive ); (11)Viewing Angle: 6:00; (12)Control LSI: T6963C-0101 (Produced by TOSHIBA); (13)Data Transfer: 8-bit parallel data transfer; (14)Backlight: LED Backlight / Yellow-green; (15)Drawings: Dimensional Outline UE-34487A.

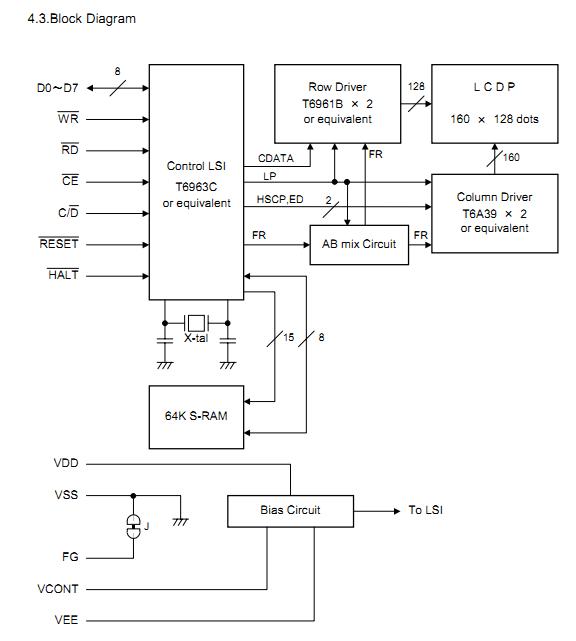

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DMF5001NY-LY |
Other |
|
Data Sheet |
Negotiable |
|
||||
