Product Summary

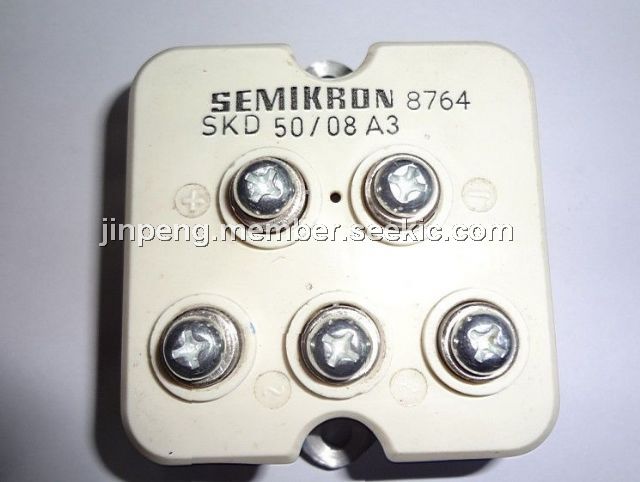

The SKD50/08 is a Power Bridge Rectifier. The typical applications of the device include Single and three phase, rectifiers for power supplies, Input rectifiers for variable frequency drives, Rectifiers for DC motor field supplies, Battery charger rectifiers.
Parametrics
SKD50/08 absolute maximum ratings: (1)ID: 10A at Tamb=45℃; isloated; 22A at Tamb=45℃; chassis; (2)ICL: 60A; (3)IFSM: 750A; (4)i2t: 2800A2s; (5)VF: 1.6V; (6)V(TO): 0.85V; (7)rT: 8mΩ; (8)IRD: 1mA; (9)trr: 10μs; (10)Tvj: -40 to 150℃; (11)Tstg: -50 to 155℃.
Features
SKD50/08 features: (1)Isolated metal case with screw terminals; (2)Blocking voltage to 1600 V; (3)High surge current; (4)SKB = single phase bridge rectifier; SKD = three phase bridge rectifier; (5)Easy chassis mounting.
Diagrams
