Product Summary

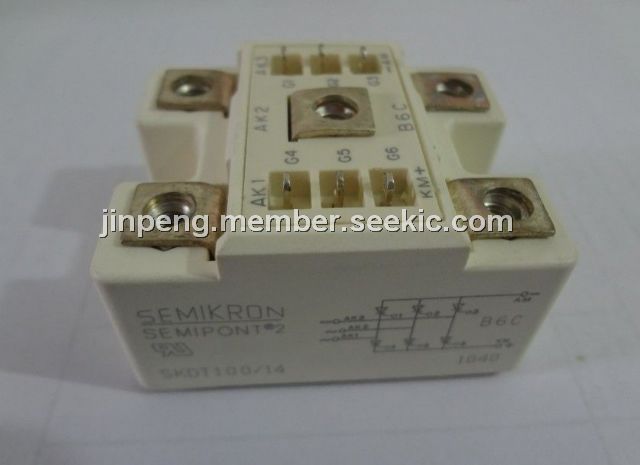

The SKDT100/14 is a controllable bridge rectifier. The applications of the SKDT60/12 include: (1)Three phase rectifiers foe power supplies; (2)Input rectifiers for variable frequency drives; (3)Rectifiers for DC motor field supplies; (4)Battery charger rectifiers.
Parametrics
SKDT100/14 specifications: (1)On the conditions of Tc=85℃, ID: 61A; (2)On the conditions of Ta=45℃, P13A/125, ID: 16A; (3)On the conditions of Ta=45℃, chassis, ID: 16A; (4)On the conditions of Ta=45℃,P1A/120(P1A/200), ID: 34A; (5)On the conditions of Tvj=25℃, 10ms, IFSM: 470A; (6)On the conditions of Tvj=25℃, 8.3~10ms, i2t: 1100A2s; On the conditions of Tvj=125℃, 8.3~10ms, i2t: 800A2s.
Features
SKDT100/14 features: (1)Robust plastic case with screw terminals; (2)Large, isolated base plate; (3)Blocking voltage up to 1400V; (4)High surge current; (5)Three phase bridge rectifier; (6)Easy chassis mounting; (7)UL recognised file no.E63532.
Diagrams
