Product Summary

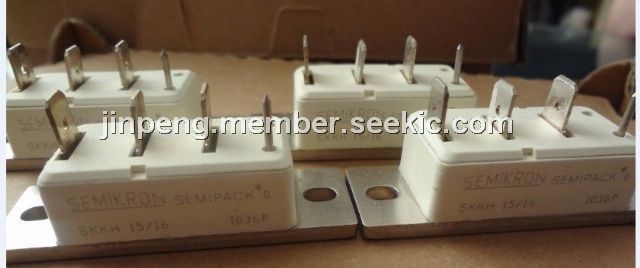

The SKKH15/16E is a diode module. The device is suitable for DC motor control, temperature control and professional light dimming.
Parametrics
SKKH15/16E absolute maximum ratings: (1)ITAV: 13.5(9.5)A when sin, 180, Tc=85(100)℃; (2)ID: 14/17A when P13A/100, Ta=45℃, B2/B6; (3)IRMS: 21/3×12A when P13A/100, Ta=45℃, W1/W3; (4)tq: 80μs when Tvj=125℃; (5)IH: 80/150mA when Tvj=25℃, typ/ max; (6)IL: 150/300mA when Tvj=25℃, RG=33Ω, typ/max; (7)VGT: 3V min when Tvj=25℃ ,dc; (8)IGT: 100mA min when Tvj=25℃, dc; (9)VGD: 0.25V max when Tvj=125℃, dc; (10)IGD: 5mA max when Tvj=125℃, dc.
Features
SKKH15/16E features: (1)heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)hard soldered joints for high reliability; (3)UL recognized, file no. E63 532.
Diagrams
 |
