Product Summary
The V33ZA05P is a transient voltage surge suppressor designed for use in the protection of low and medium-voltage circuits and systems. Typical applications of the V33ZA05P include motor control, telecom, automotive systems, solenoid, and power supply circuits to protect circuit board components and maintain data integrity.
Parametrics
V33ZA05P absolute maximum ratings: (1)Steady State Applied Voltage: AC Voltage Range (VM(AC)RMS): 4 to 460 V; DC Voltage Range (VM(DC)): 5.5 to 615 V; (2)peak pulse current, ITM: 50 to 6500A; (3)single pulse energy range: 0.1 to 52J; (4)operating ambient temperature range, TA: -55 to 85℃; (5)storage temperature range, Tstg: -55 to 125℃.
Features
V33ZA05P features: (1)lead-free, halogen free and RoHS compliant; (2)wide operating voltage range VM(AC)RMS 4V to 460V; (3)DC voltage ratings 5.5 to 615V; (4)no derating up to 85℃ ambient; (5)5 model sizes available: 5, 7. 10, 14, and 20mm; (6)radial lead package for hard-wired or printed circuit board designs; (7)available in tape and reel or bulk pack; (8)standard lead form options.

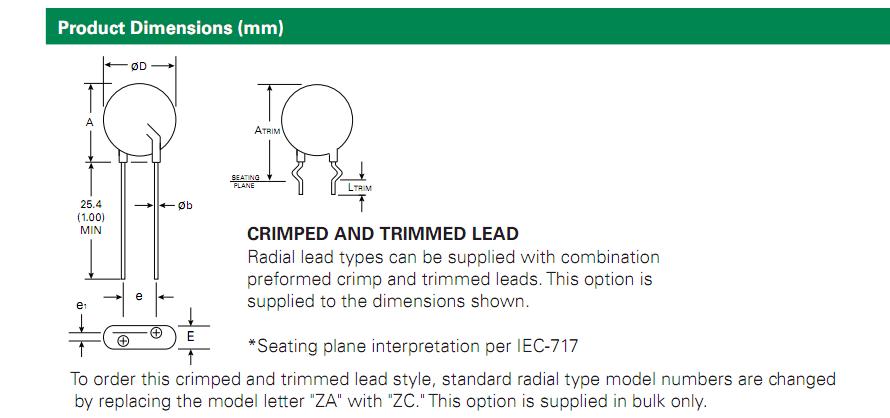

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
V33ZA05P |
Littelfuse |
Varistors 20V 100A 500pF |
Data Sheet |
|
|
|||||||||||||
V33ZA05PX2855 |
RADIAL VARISTOR 05MM |
Data Sheet |
|
|
