Product Summary
The VI-273-CW is a DC-DC Converter. Operating at frequencies up to 2 MHz, the VI-273-CW offers exceptional power density, efficiency, noise performance, reliability and ease of use. Power Boosters provide a simple, cost effective, off-the-shelf solution for higher power output requirements. The VI-273-CW is also available in half-size, half-power VI-J00 MiniMods. One or more boosters may be used to create synchronous arrays capable of supplying several kilowatts of output power.
Parametrics
VI-273-CW general specifications: (1)No load power dissipation:1.35W to 2W; (2)Setpoint accuracy:1% to 2% ; (3)Load/line regulation:0.5% ; (4)Load/line regulation:1% ; (5)Output temperature drift:0.02%/℃; (6)Long term drift:0.02%/1k hours; (7)Trim range1:50% to 110% ; (8)Total remote sense compensation:0.5V; (9)OVP set point:125%; (10)Current limit:105% to 135% ; (11)Short circuit current:20% to 140%; (12)Gate out impedance:50Ohms; (13)Gate in open circuit voltage:6V ; (14)Gate in low threshold:0.65V; (15)Gate in low current:6mA; (16)Power sharing accuracy:0.95 to 1.05.
Features
VI-273-CW features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TüV, VDE, BABT, AUSTEL; (3)Up to 90% Efficiency ; (4)Size: 4.6” x 2.4” x 0.5”(116,8 x 61,0 x 12,7); (5)Remote Sense and Current Limit; (6)OVP, Thermal Shutdown; (7)Logic Disable ; (8)Wide Range Output Adjust; (9)Compatible Power Booster Modules; (10)ZCS Power Architecture; (11)Low Noise FM Control; (12)CE Marked.

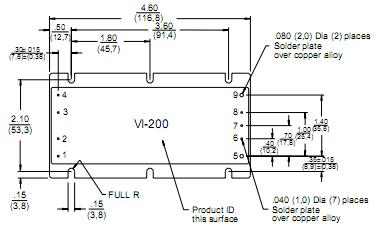

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VI-273-CW |
|
CONVERTER MOD DC/DC 24V 100W |
Data Sheet |
|
|
||||||
|
VI-273-CW-B1 |
|
CONVERTER MOD DC/DC 24V 100W |
Data Sheet |
|
|
||||||
|
VI-273-CW-F1 |
|
CONVERTER MOD DC/DC 24V 100W |
Data Sheet |
|
|
||||||
|
VI-273-CW-F2 |
|
CONVERTER MOD DC/DC 24V 100W |
Data Sheet |
|
|
||||||
|
VI-273-CW-F3 |
|
CONVERTER MOD DC/DC 24V 100W |
Data Sheet |
|
|
||||||
|
VI-273-CW-F4 |
|
CONVERTER MOD DC/DC 24V 100W |
Data Sheet |
|
|
||||||
|
VI-273-CW-S |
|
CONVERTER MOD DC/DC 24V 100W |
Data Sheet |
|
|
||||||
