Product Summary

The 1N4004 is a general purpose rectifier.

Parametrics

1N4004 absolute maximum ratings: (1)VRRM Peak Repetitive Reverse Voltage: 400 V; (2)IF(AV) Average Rectified Forward Current, .375 lead length @ TA = 75℃: 1.0 A; (3)IFSM Non-repetitive Peak Forward Surge Current 8.3 ms Single Half-Sine-Wave: 30 A; (4)Tstg Storage Temperature Range: -55 to +175 ℃; (5)TJ Operating Junction Temperature: -55 to +175 ℃.

Features

1N4004 features: (1)Low forward voltage drop; (2)High surge current capability.

Diagrams

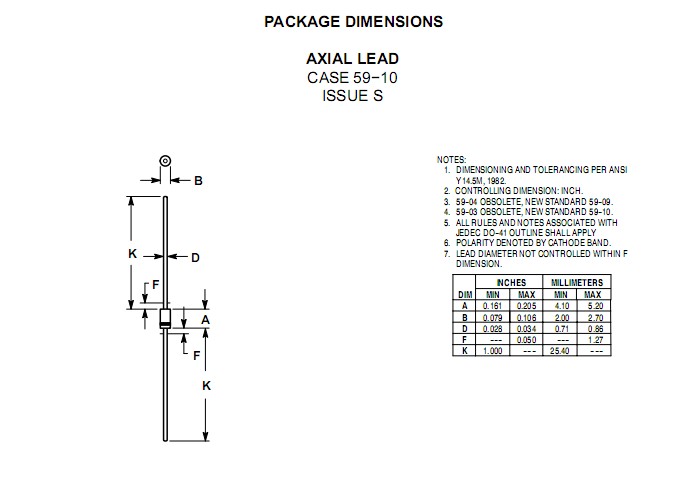

1N4004 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1N4004/54
1N4004/54

RECTIFIER 1 AMP 400V DO-41
Data Sheet
Negotiable
1N4004_NL
1N4004_NL

DIODE GP 400V 1A RECT DO41
Data Sheet
Negotiable
1N4004-B
1N4004-B
Rectron
Rectifiers Vr/400V Io/1A BULK
Data Sheet
0-1: $0.10
1-25: $0.07
25-100: $0.03
100-250: $0.03
1N4004B-G
1N4004B-G

RECTIFIER GP 400V 1.0A DO41
Data Sheet
0-1000: $0.02
1N4004E-E3/73
1N4004E-E3/73
Vishay Semiconductors
Rectifiers Vr/400V Io/1A
Data Sheet
0-1: $0.05
1-10: $0.04
10-100: $0.04
100-250: $0.03
1N4004GP
1N4004GP
Fairchild Semiconductor
Rectifiers 1.0a Rectifier General Purpose
Data Sheet
Negotiable
1N4004GP-E3/1
1N4004GP-E3/1
Vishay Semiconductors
Rectifiers 400 Volt 1.0 Amp Glass Passivated
Data Sheet
Negotiable
1N4004GP-E3/51
1N4004GP-E3/51
Vishay Semiconductors
Rectifiers Vr/400V Io/1A Glass Passivated
Data Sheet
Negotiable
