Product Summary

The 1N4148 is a high-speed switching diode fabricated in planar technology, and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages. It is suitable for high-speed switching.

Parametrics

1N4148 absolute maximum ratings: (1)VRRM, repetitive peak reverse voltage: 100V max; (2)VR, continuous reverse voltage: 100V max; (3)IF, continuous forward current: 200mA max; (4)IFRM, repetitive peak forward current: 450mA max; (5)Ptot, total power dissipation: 500 mW max when Tamb = 25℃; (6)Tstg, storage temperature: -65 to +200℃; (7)Tj, junction temperature: 200℃ max.

Features

1N4148 features: (1)Hermetically sealed leaded glass SOD27 (DO-35) package; (2)igh switching speed: max. 4 ns; (3)eneral application; (4)ontinuous reverse voltage: max. 100 V; (5)epetitive peak reverse voltage: max. 100 V; (6)petitive peak forward current: max. 450 mA.

Diagrams

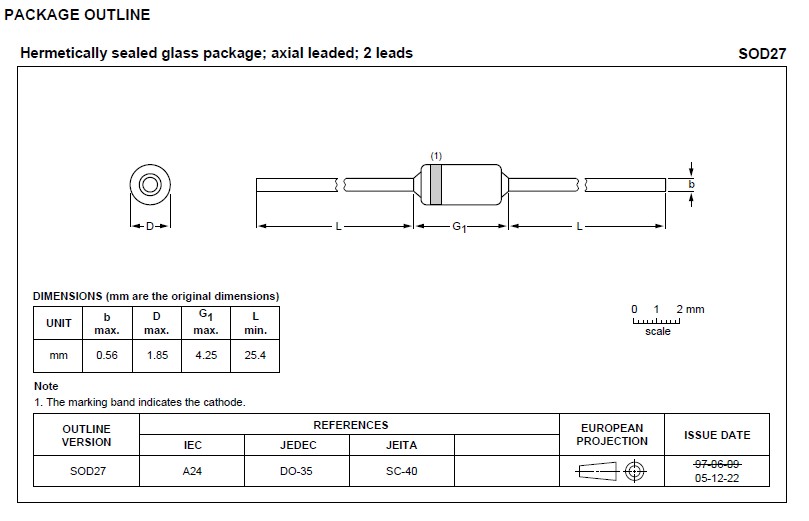

1N4148 package outline
