Product Summary

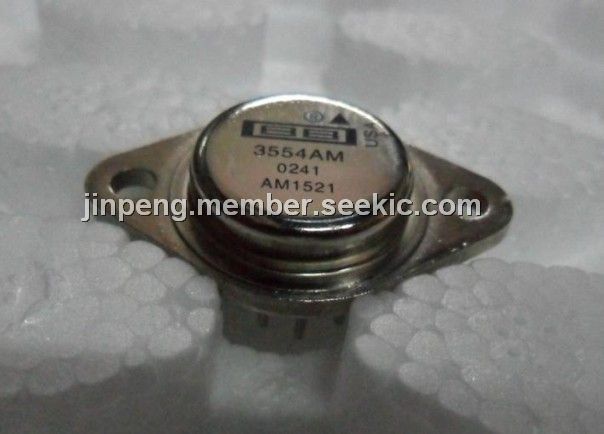

The 3554AM is a very high performance Hybrid operational amplifier with JFET inputs and high-speed high-drive bipolar output. The combination of respectable DC specifications with unusually complete AC, noise, and transient specifications guaranteed over a wide range of conditions results in an amplifer that can be used in a wide variety of applications. The 3554AM slews at 1000V/μs and outputs up to ±100mA at ±10V. The applications of the 3554AM include: baseband video amplifiers, test equipment, waveform generators, pulse amplifiers, fast A/D and D/A converters.

Parametrics

3554AM absolute maximum ratings: (1)Supply voltage(V+ to V-): 40V; (2)Input voltage: V+ to V-; (3)Continuous output current: ±150mA; (4)Peak output current: ±250mA; (5)Power dissipation: 3.5W; (6)Operating temperature range: -25℃≤TA≤+85℃; (7)Junction temperature: +175℃; (8)Storage temperature: -65℃≤TA≤+150℃; (9)Lead temperature: +300℃.

Features

3554AM features: (1)1000V/μs slew rate; (2)Setting-time 150ns max; (3)Full differential input; (4)100mA minimum output current; (5)Drives coaxial cable directly.

Diagrams

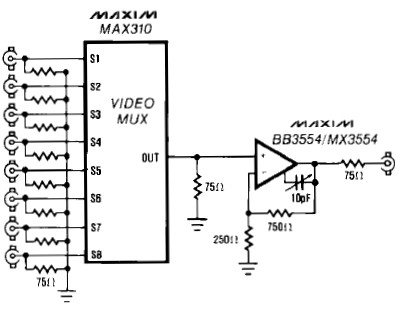

3554AM diagram
