Product Summary

The ADC0820CCWM is an 8-Bit High Speed μP Compatible A/D Converter with Track/Hold Function. By using a half-flash conversion technique, the ADC0820CCWM CMOS A/D offers a 1.5 μs conversion time and dissipates only 75 mW of power. The half-flash technique consists of 32 comparators, a most significant 4-bit ADC and a least significant 4-bit ADC. For ease of interface to microprocessors, the ADC0820CCWM has been designed to appear as a memory location or I/O port without the need for external interfacing logic.

Parametrics

ADC0820CCWM absolute maximum ratings: (1)Supply Voltage (VCC):10V; (2)Logic Control Inputs:-0.2V to VCC +0.2V; (3)Voltage at Other Inputs and Output:0.2V to VCC +0.2V; (4)Storage Temperature Range:-65℃ to +150℃; (5)Package Dissipation at TA = 25℃:875 mW; (6)Input Current at Any Pin:1 mA; (7)Package Input Current:4 mA; (8)ESD Susceptability:1200V; (9)Lead Temp. (Soldering, 10 sec.): Dual-In-Line Package(plastic):260℃, Dual-In-Line Package (ceramic):300℃; (10)Surface Mount Package: Vapor Phase (60 sec.):215℃, Infrared (15 sec.):220℃.

Features

ADC0820CCWM features: (1)Built-in track-and-hold function; (2)No missing codes; (3)No external clocking; (4)Single supply:5 VDC; (5)Easy interface to all microprocessors, or operates stand-alone; (6)Latched TRI-STATE output; (7)Logic inputs and outputs meet both MOS and T2L voltage level specifications; (8)Operates ratiometrically or with any reference value equal to or less than VCC; (9)0V to 5V analog input voltage range with single 5V supply; (10)No zero or full-scale adjust required; (11)Overflow output available for cascading; (12)0.3” standard width 20-pin DIP; (13)20-pin molded chip carrier package; (14)20-pin small outline package; (15)20-pin shrink small outline package (SSOP).

Diagrams

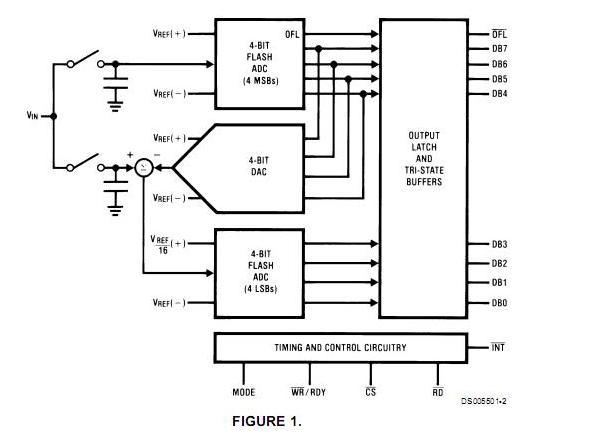

ADC0820CCWM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

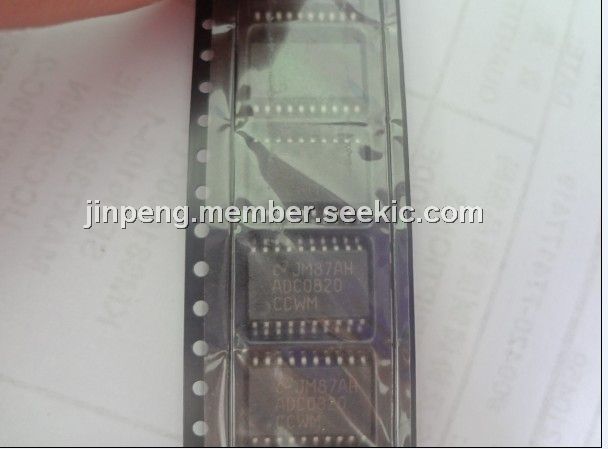

ADC0820CCWM
ADC0820CCWM

National Semiconductor (TI)

ADC (A/D Converters)

Data Sheet

0-288: $1.48
288-504: $1.28
504-1008: $0.98
1008-2520: $0.94
ADC0820CCWM/NOPB
ADC0820CCWM/NOPB

National Semiconductor (TI)

ADC (A/D Converters)

Data Sheet

0-1: $1.98
1-25: $1.59
25-100: $1.45
100-250: $1.31
ADC0820CCWMX/NOPB
ADC0820CCWMX/NOPB

National Semiconductor (TI)

ADC (A/D Converters)

Data Sheet

0-1: $2.12
1-25: $1.73
25-100: $1.55
100-250: $1.42
ADC0820CCWMX
ADC0820CCWMX

National Semiconductor (TI)

ADC (A/D Converters)

Data Sheet

0-1000: $0.98
1000-3000: $0.94
3000-5000: $0.90
