Product Summary

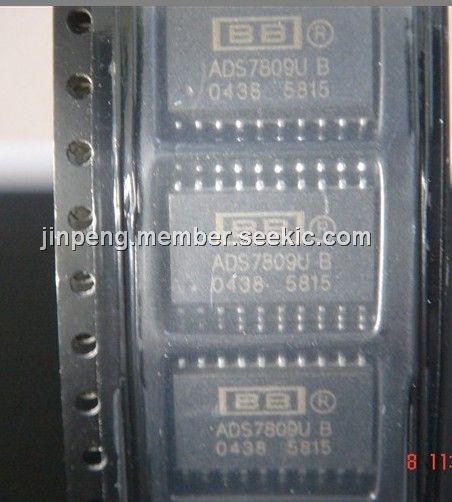

The ADS7809U is a complete 16-bit sampling analogto-digital using state-of-the-art CMOS structures. It contains a 16-bit capacitor-based SAR A/D with S/H, reference, clock, and a serial data interface. Data can be output using the internal clock, or can be synchronized to an external data clock. The ADS7809U also provides an output synchronization pulse for ease of use with standard DSP processors. The ADS7809U is specified at a 100kHz sampling rate, and guaranteed over the full temperature range.
Parametrics
ADS7809U absolute maximum ratings: (1)Ground Voltage Differences: DGND, AGND2: ±0.3V; (2)VANA: 7V; (3)VDIG to VANA: +0.3; (4)VDIG: 7V; (5)Digital Inputs: –0.3V to VDIG +0.3V; (6)Maximum Junction Temperature: +165℃; (7)Internal Power Dissipation: 700mW; (8)Lead Temperature (soldering, 10s): +300℃.
Features
ADS7809U features: (1)100kHz sampling rate; (2)86dB sinad with 20kHz input; (3)±2 LSB INL; (4)DNL: 16 BITS No Missing Codes; (5)Six specified input ranges; (6)Seriaoutput; (7)Single +5v supply operation; (8)Pin-compatible with 12-bit ADS7808; (9)Uses internaor externareference; (10)100mW max power dissipation; (11)20-Pin 0.3 plastic dip and soic; (12)Simple dsp interface.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS7809U |
Texas Instruments |
ADC (A/D Converters) 16-Bit 10us Serial CMOS Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7809U/1K |
Texas Instruments |
ADC (A/D Converters) 16-Bit 10us Serial CMOS Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7809UB |
Texas Instruments |
ADC (A/D Converters) 16-Bit 10us Serial CMOS Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7809U/1KE4 |
Texas Instruments |
ADC (A/D Converters) 16-Bit 10us Serial CMOS Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7809UB/1KE4 |
Texas Instruments |
ADC (A/D Converters) 16-Bit 10us Serial CMOS Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7809UB/1K |
Texas Instruments |
ADC (A/D Converters) 16-Bit 10us Serial CMOS Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7809UE4 |
Texas Instruments |
ADC (A/D Converters) 16-Bit 10us Serial CMOS Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7809UBE4 |
Texas Instruments |
ADC (A/D Converters) 16-Bit 10us Serial CMOS Sampling |
Data Sheet |
|
|
||||||||||||
