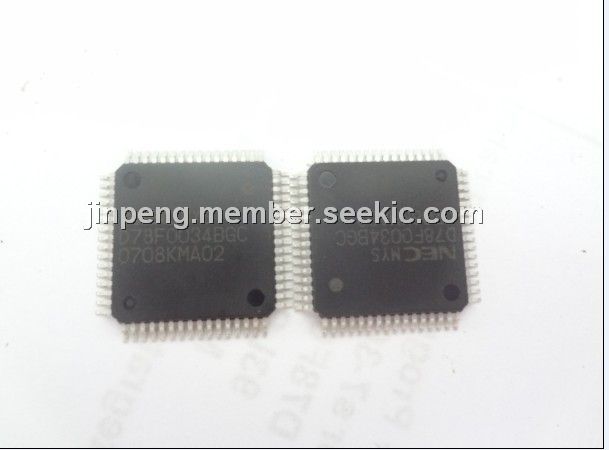

Product Summary

The D78F0034BGC is an 8-bit single-chip microcontroller. The D78F0034BGC incorporates flash memory, which can be programmed and erased while mounted on the board.

Parametrics

D78F0034BGC absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +6.5 V; VPP: –0.3 to +10.5 V; AVDD: –0.3 to VDD + 0.3Note V; AVREF: –0.3 to VDD + 0.3Note V; AVSS: –0.3 to +0.3 V; (2)Input voltage, VI1: –0.3 to VDD + 0.3Note V; (3)Output voltage, VO: –0.3 to VDD + 0.3Note V; (4)Analog input voltage, VAN: –0.3 to AVREF + 0.3V; (5)Output current, high IOH : –10 mA; (6)Output current, low IOL: 20 mA; (7)Operating ambient temperature, TA: –40 to +85℃; (8)Storage temperature, Tstg: –40 to +125℃.

Features

D78F0034BGC features: (1)Pin-compatible with mask ROM versions (except VPP pin); (2)Flash memory: 32 KB; (3)Internal high-speed RAM: 1,024 bytes; (4)Supply voltage: VDD = 1.8 to 5.5 V.

Diagrams

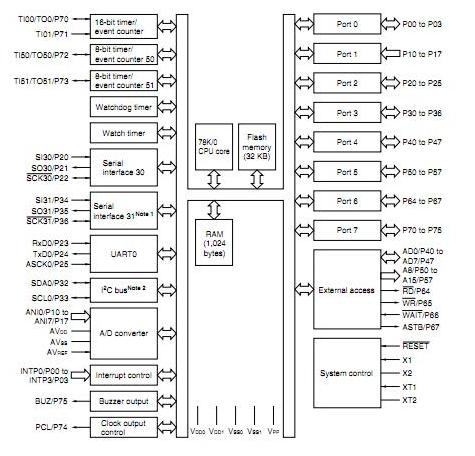

D78F0034BGC block diagram
