Product Summary

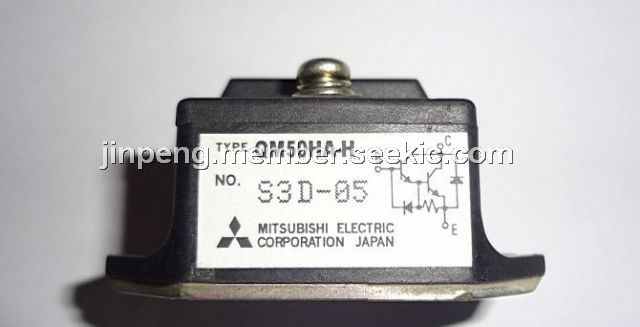

The QM50HA-H is a MITSUBISHI transistor module.

Parametrics

QM50HA-H absolute maximum ratings: (1)Collector-emitter voltage: 600 V; (2)Collector-emitter voltage: 600 V; (3)Collector-base voltage: 600 V; (4)Emitter-base voltage: 7 V; (5)Collector current: 50 A; (6)Collector reverse current: 50 A; (7)Collector dissipation: 310 W; (8)Base current: 3 A; (9)Surge collector reverse current (forward diode current): 500 A; (10)Junction temperature: -40 to +150 ℃; (11)Storage temperature: -40 to +125 ℃; (12)Isolation voltage: 2500 V.

Features

QM50HA-H features: (1)IC Collector current: 50A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized: Yellow Card No. E80276 (N), File No. E80271.

Diagrams

QM50HA-H block diagram
