Product Summary

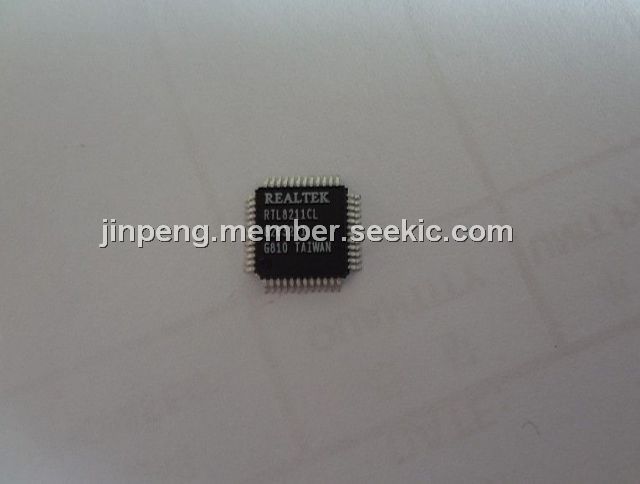

The RTL8211CL is a highly integrated Ethernet transceiver that complies with 10Base-T, 100Base-TX, and 1000Base-T IEEE 802.3 standards. It provides all the necessary physical layer functions to transmit and receive Ethernet packets over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable.
Parametrics
RTL8211CL absolute maximum ratings:(1)VDD33, AVDD33, Supply Voltage 3.3V: -0.4 to +0.4 V; (2)AVDD10, DVDD10, Supply Voltage 1.05V: -0.1 to +0.1 V; (3)VDD25 (RGMII 2.5V), Supply Voltage 2.5V: -0.2 to +0.3 V; (4)DCinput, Input Voltage: -0.5 to Corresponding Supply Voltage + 0.5 V; (5)DCoutput, Output Voltage: -0.3 to Corresponding Supply Voltage + 0.5 V; (6)NA Storage Temperature: -55 to +125℃.
Features
RTL8211CL features: (1)1000Base-T IEEE 802.3ab Compliant; (2)100Base-TX IEEE 802.3u Compliant; (3)10Base-T IEEE 802.3 Compliant; (4)IEEE 802.3 Compliant RGMII; (5)Supports Auto-Negotiation; (6)Supports Parallel Detection; (7)Crossover Detection & Auto-Correcti; (8)Automatic polarity correction; (9)Transmit wave-shaping; (10)DSP processing; (11)Internal hybrids for 1000Base-T; (12)Baseline Wander Correction; (13)Supports half/full duplex operation; (14)Supports 25MHz external crystal or OSC; (15)Provides 125MHz clock source for MAC; (16)Provides 6 network status LEDs (RTL8211C); (17)Provides 3 network status LEDs (RTL8211CL); (18)Supports Link Down power saving; (19)Built-in Switching regulator; (20)64-pin QFN (RTL8211C); (21)48-pin LQFP (RTL8211CL); (22)0.11μm process with very low power consumption.

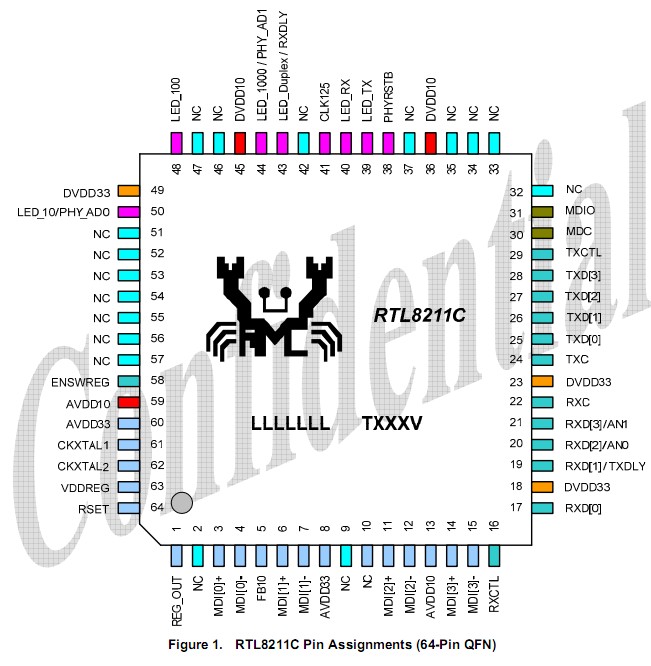

Diagrams
 |
