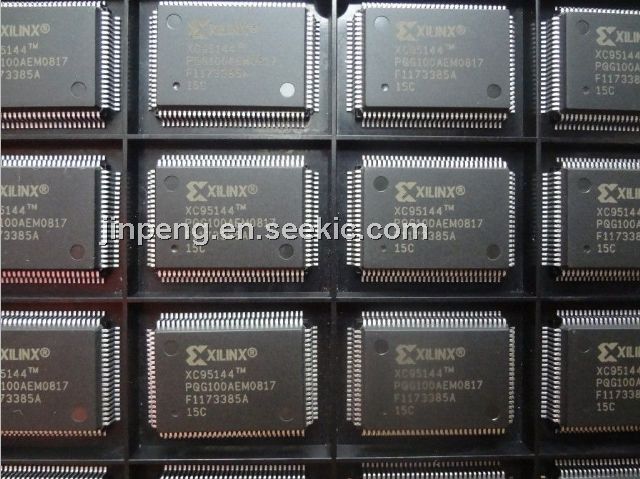

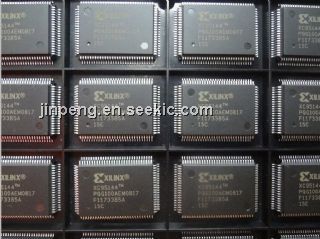

XC95144-15PQ100C

programmable CPLD, -0.5 to 7V, 10mA, XC95144-15PQ100C

Rated 5 Rating 5 | reviews | Write a review

Price:: US $12.50~12.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
500 ~ 1000 :	12.50 / Piece

PartNumber:: XC95144-15PQ100C

Brand:: Xilinx, Inc - Xilinx | Pack: | D/C: 08+

Availability:: Supply Ability: 1000000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. lily zhong's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-05

From Other Seller

Part Number:XC95144-15PQ100C
US $12.50 - 12.50
Quantity:

piece

Product Summary

The XC95144-15PQ100C is an in-system programmable CPLD. It provides advanced in-system programming and test capabilities for general purpose logic integration. It is comprised of eight 36V18 Function Blocks, providing 3,200 usable gates with propagation delays of 7.5 ns.

Parametrics

XC95144-15PQ100C absolute maximum ratings: (1)Supply voltage relative to GND: -0.5 to 7V; (2)input voltage relative to GND: -0.5 to VCC+0.5V; (3)voltage applied to 3-state output: -0.5 to VCC+0.5V; (4)storage temperature: -65 to 150℃; (5)junction temperature: 150℃.

Features

XC95144-15PQ100C features: (1)Extensive IEEE Std 1149.1 boundary-scan (JTAG) support; (2)Programmable power reduction mode in each macrocell; (3)Slew rate control on individual outputs; (4)User programmable ground pin capability; (5)Extended pattern security features for design protection; (6)High-drive 24 mA outputs; (7)3.3V or 5V I/O capability.
