Product Summary

The BAS316 is a high-speed switching diode. It is encapsulated in small Surface-Mounted Device (SMD) plastic packages. It is suitable for high-speed switching and general-purpose switching.

Parametrics

BAS316 absolute maximum ratings: (1)Tj junction temperature: - 150 ℃ max; (2)Tamb ambient temperature: -65 +150 ℃; (3)Tstg storage temperature: -65 +150 ℃.

Features

BAS316 features: (1)High switching speed: trr≤4ns; (2)Low capacitance; (3)Low leakage current; (4)Reverse voltage: VR≤100 V; (5)Repetitive peak reverse voltage: VRRM≤100 V; (6)Small SMD plastic packages.

Diagrams

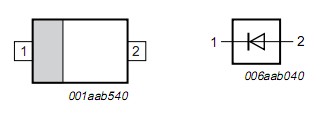

BAS316 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAS316
BAS316
Other

Data Sheet
Negotiable
BAS316 /T3
BAS316 /T3
NXP Semiconductors
Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11
Data Sheet
Negotiable
BAS316,115
BAS316,115
NXP Semiconductors
Diodes (General Purpose, Power, Switching) 100V 250mA
Data Sheet
0-1: $0.04
1-25: $0.03
25-100: $0.03
100-1000: $0.02
1000-3000: $0.02
BAS316,135
BAS316,135
NXP Semiconductors
Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11
Data Sheet
0-1: $0.04
1-25: $0.03
25-100: $0.02
100-250: $0.02
BAS316-TP
BAS316-TP

DIODE 100V 500MA SOD323
Data Sheet
0-1: $0.23
1-10: $0.15
10-100: $0.07
100-250: $0.05
250-500: $0.04
500-1000: $0.03
BAS316WS
BAS316WS
Taiwan Semiconductor
Diodes (General Purpose, Power, Switching) Schottky 200mW
Data Sheet
0-3000: $0.02
3000-6000: $0.02
