Product Summary

The gp2500-sc41-24v is a Pro-face Graphic Operator Interface. It is a large feature rich operator interface touch screen with CompactFlash Port, Ethernet and dual serial ports for communications. Additional features of the gp2500-sc41-24v include sound output for audio machine feedback, and larger memory(compared to GP2501S) for large or highly detailed HMI applications. Add-in powerful data collection software and web-enabled features, the gp2500-sc41-24v offers low cost color data collection and process monitoring HMI solution.

Parametrics

gp2500-sc41-24v specifications: (1)Rated Voltage: 24VDC; (2)Rated Voltage Range: 19.2VDC to 28.8VDC; (3)Power Consumption: 50W or less; (4)Ambient Operating Temp.: 0℃ to 50℃; (5)Storage Temperature: -20℃ to 60℃; (6)Storage Humidity: 10%RH to 90%RH (non-condensing, wet bulb temperature: 39℃ or less); (7)Vibration Resistance: IEC61131-2 compliant. When vibration is NOT continuous: 10Hz to 57Hz 0.075mm, 57Hz to 150Hz 9.8m/s2; When vibration is continuous: 10Hz to 57Hz 0.035mm, 57Hz to 150Hz 4.9m/s2 X,Y, Z direction for 10 times (80min.).

Features

gp2500-sc41-24v features: (1)10.4 inch touch screen; (2)STN 64 Color LCD; (3)640 × 480 pixels; (4)Printer Port; (5)CompactFlash Port; (6)RS-232/422 Com Ports; (7)Barcode reader support; (8)System alarm output; (9)Optional Communication Module Interface.

Diagrams

gp2500-sc41-24v diagram

GP2500-0.040-02-0816
GP2500-0.040-02-0816

Bergquist Company

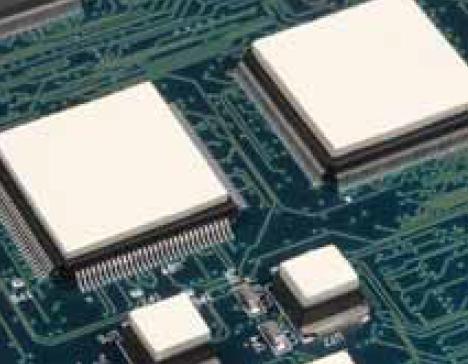

Thermal Interface Products GAP-PAD 2500 .040" 8X16"

Data Sheet

0-5: $60.96
5-10: $57.91
10-50: $55.01
50-100: $52.27
GP2500S20-0.020-02-0816
GP2500S20-0.020-02-0816

Bergquist Company

Thermal Interface Products 8X16" .020" LT YLW GAP PAD 2500S20

Data Sheet

0-1: $25.47
1-10: $24.19
10-50: $22.99
50-100: $21.83
GP2500S20-0.040-02-0816
GP2500S20-0.040-02-0816

Bergquist Company

Thermal Interface Products 8X16" .040" LT YLW GAP PAD 2500S20

Data Sheet

0-1: $33.23
1-10: $31.57
10-50: $29.99
50-100: $28.49
GP2500S20-0.060-02-0816
GP2500S20-0.060-02-0816

Bergquist Company

Thermal Interface Products 8X16" .060" LT YLW GAP PAD 2500S20

Data Sheet

0-1: $36.22
1-10: $32.26
10-50: $29.08
50-100: $26.81
GP2500S20-0.080-02-0816
GP2500S20-0.080-02-0816

Bergquist Company

Thermal Interface Products 8X16" .080" LT YLW GAP PAD 2500S20

Data Sheet

0-1: $42.64
1-10: $37.97
10-50: $34.23
50-100: $33.75
GP2500S20-0.100-02-0816
GP2500S20-0.100-02-0816

Bergquist Company

Thermal Interface Products 8X16" .100" LT YLW GAP PAD 2500S20

Data Sheet

0-1: $53.54
1-10: $50.82
10-50: $48.30
50-100: $45.12
